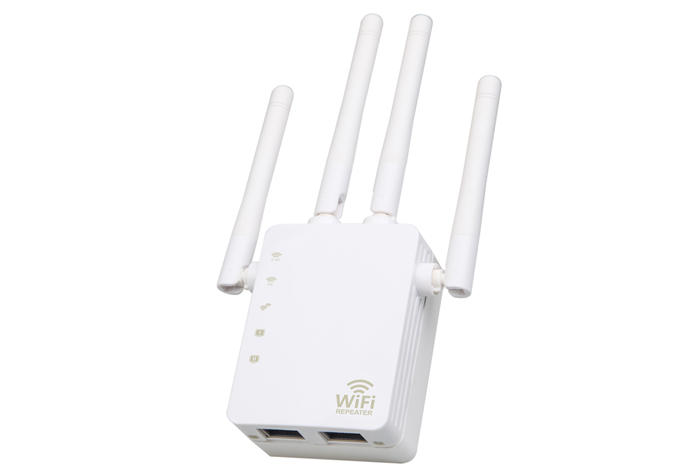

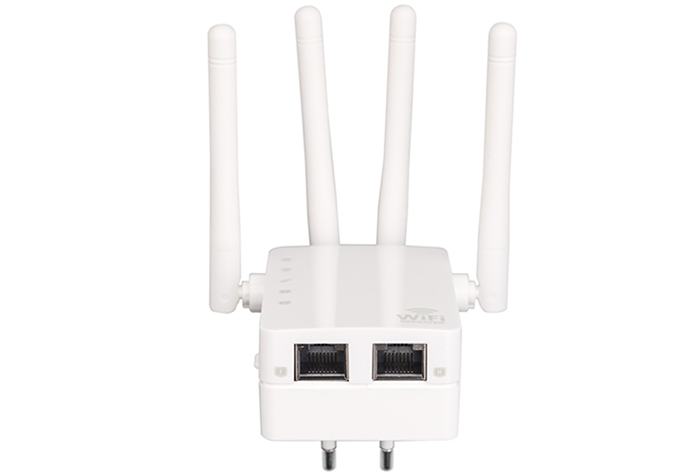

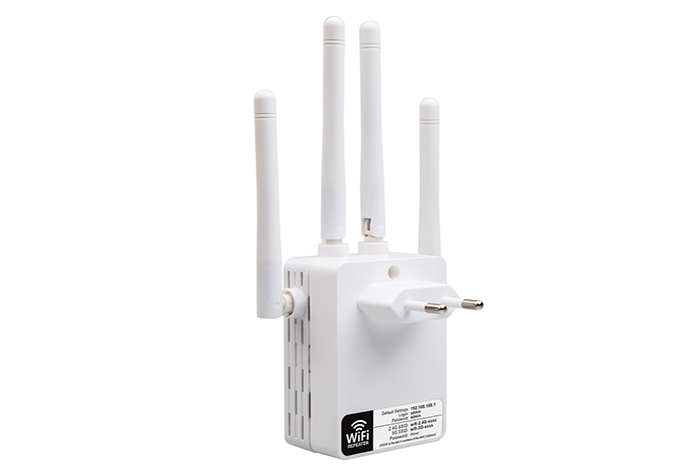

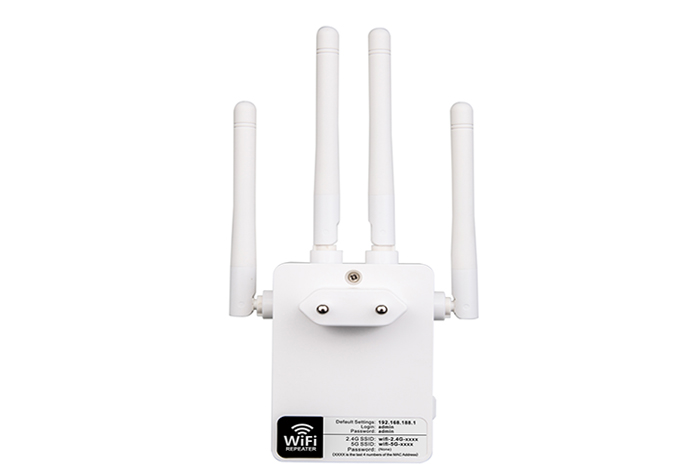

Model: AT-R1200
This dual band wifi Repeater is Mainly used for providing free WIFI service in big area such as factory, community, street, home or etc. For example, the normal enhancer can expend distance up to 50~100 meters away. If there are more repeaters or more bigger power repeater, the range will extended further; the Repeater simultaneously supports 2.4G and 5G wireless network connection, and it can supports 2.4G or 5G transmission speeds of up to 1200M. It has 2dBi Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.
Ø Dual Band : 2.4Ghz and 5.8Ghz
Ø Range Extender mode boosts Wireless Signal to previously unreachable or hard-to wire areas flawlessly
Ø Small size and wall-mounted design make it easy to deploy and move flexibly
Ø WPS button allows users to set up instantly Smart
Ø Signal Indicator helps to find the right location to place the range extender
Ø Encryption: 64/128 bits WEP; WPA/WPA2
Ø Provide 2kinds of work mode: AP mode and Repeater mode
Ø WLAN access point/client according to IEEE 802.11ac/n/g/b.
|
Standards |
IEEE 802.11ac, IEEE 802.11a, |
|
Wireless Signal Rates With Automatic Fallback |
5GHz |
|
Frequency Range |
2.4 GHz & 5.8GHz |
|
Wireless Transmit Power |
<20dBm (EIRP) |
|
Modulation Type |
DBPSK, DQPSK, CCK, OFDM |
|
Receiver Sensitivity |
MSC7- HT20: -68dBm@10% PER OFDM-54M: -68dBm@10% PER CCK-11M: -89dBm@10% PER |
|
Wireless Security |
64/128bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES) |
|
Interface |
2 * 10/100M LAN |
|
Antenna Type |
4 * 2dBi Antenna |
|
Power supply |
Input AC100~240V |
|
Operating Temperature |
0°C~40°C (32°F~104°F) |
|
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
|
Relative Humidity |
10% ~ 90%, non-condensation |
|
Storage Humidity |
5%~95% non-condensing |
