Model: AT-R811
KEYFEATURES
●300M wireless Extended Range.
●External Omni Directional antenna.
●Provides one LAN port.
●Universally complies with IEEE802.11n, IEEE802.11g and IEEE802.11b standards.
●WLAN802.11n for wireless high-speed access up to 300Mbps, ideal for video streaming, online gaming and Internet calling.
●Easy Setup Assistant provides quick & hassle free installation.
●User interface supports free WEB software updates.
●Supports far-distance transmission,100 meters indoor,300meters outdoor(depends on the environments around)
●Supports remote/local Web management and web upgrade.
|
Chipset |
RealtekRTL8196E/ MTK7620N |
|
Interface |
10/100Mbps LAN port |
|
Wireless Speed |
11n: Up to 300Mbps |
|
Frequency Range |
2.4-2.4835GHz |
|
Wireless Transmit Power |
20dBm (MAXEIRP) |
|
Antenna |
2*2dBi External Antennas (Fixed) |
|
Wireless Security |
64/128bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES) |
|
Work Mode |
Repeater/AP |
|
Temperature Range |
Operating: -20ºCto70ºC, Storage: -40ºCto90ºC |
|
Humidity |
Operating:5%to95%(non-condensing), Storage:Max.90%(non-condensing) |
|
Support Operating System |
Windows XP/Vista / Linux /Win7/Win8/Win8.1/Win10/MacOS |
|

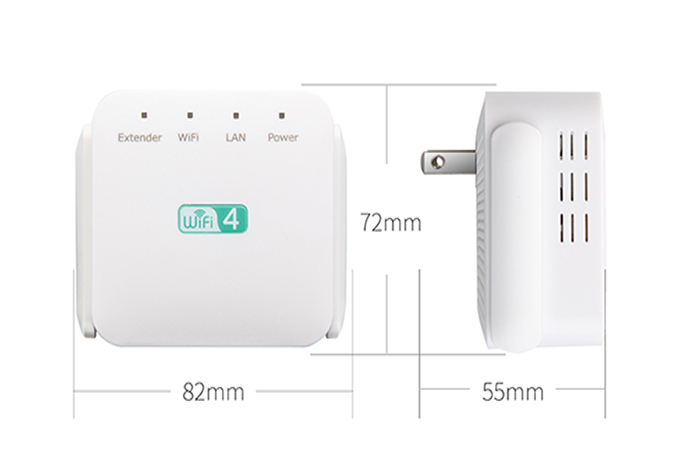

Dimensions (H x W x D) |
82x72x55mm |
