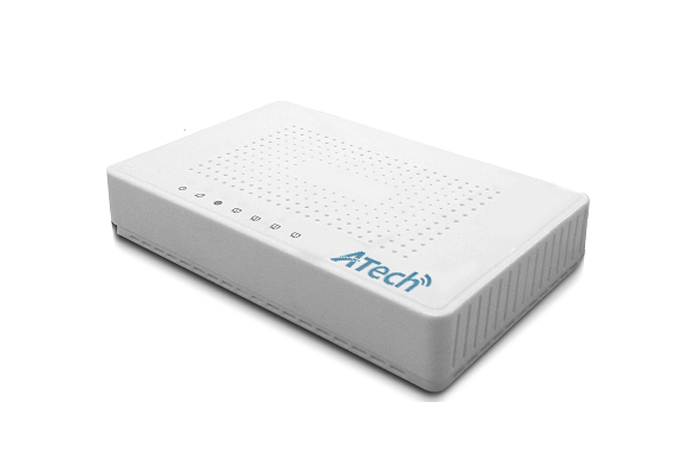

Model: AT-GP8022V
2-Port GPON Terminal adopt newest chip generation solution, small volume with product, It’s an incredibly robust device allowing users to access high-speed internet connect GPON port and share it with a Gigabit Ethernet port. With upstream 1.25Gbps and downstream to 2.5Gbps and transmission distance up to 20Km, the AT-GP8022V provides high-performance forwarding capabilities to ensure smooth VoIP. With the speed of up to 300Mbps, it can provide users with extraordinary smooth internet surfing, internet phone calling, and on-line gaming. Moreover, by adopting an external Omni-directional antenna, AT-GP8022V could greatly increases the wireless range & sensitivity, which enables you to receive wireless signals in the farthest corner of your home or office. You can quickly setup the security at a simple push of the WPS (WiFi Protected Setup) button on the fashionable designed router, preventing your device from potential internet attacks. And it provides cost-effective VoIP services with FXS Port.
*Wireless N speed up to 300Mbps, ideal for internet surfing and on-line gaming
*Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km
*Fiber access and gigabit port provide incredibly fast transfer speeds
*Supports OMCI (ONT Management Control Interface) remote management
*TDM inner transmission, support Native TDM type and CES over GEM
*Pass though T-CONT-GEM port to be in progress and multiple-access BDA and QoS manage.
*Easy Setup Assistant provides quick & hassle free installation
General |
|
GPON Standards |
ITU-T G.984 |
Distance |
20Km Max |
Data Rates |
Upstream:1.25Gbps, Downstream:2.5Gbps |
Wireless Standards |
IEEE802.11b/g/n,2.4GHz |
Signal Rate |
2.4GHz:Up to 300Mbps |
Operation Frequency |
2.4GHz |
Receive Sensitivity |
2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm |
Wireless Security |
WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
VOIP Standards |
SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
Hardware |
|
Interfaces |
1 x SC/APC GPON Port 1 x 10/100/1000Mbps LAN Port 1 x 10/100Mbps LAN Port 1 x FXS Port |
Buttons |
Power ON/OFF Button, WPS/WiFi Button,Reset Button |
Power Supply |
DC 12V 1A |
Antenna |
2 x 2.4GHz 5dBi internal antennas |
Dimensions (W X D X H) |
165 x 105x 28mm |
Software Features |
|
WAN Type |
Dynamic IP/Static IP/PPPoE |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Quality of Service |
WMM, Bandwidth Control |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
VOIP Features |
One RJ-11 FXS ports for connecting to analog telephones Call forwarding, Call waiting, Call block, 3-way conference call, etc. |
Management |
Access Control Local Management Remote Management |
Internet Protocol |
IPv4, IPv6 |
Environment |
|
Operating Temperature |
0°C~40°C (32°F~104°F) |
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
Relative Humidity |
10%~90%, non-condensing |
Storage Humidity |
5%~95%, non-condensing |
Certifications |
CE, RoHS |
Package Contents |
|
Package Contents |
1 x GPON Router 1 x Quick Installation Guide 1 x Power Adapter 1 x Ethernet Cable |
