Model: AT-GP8002V

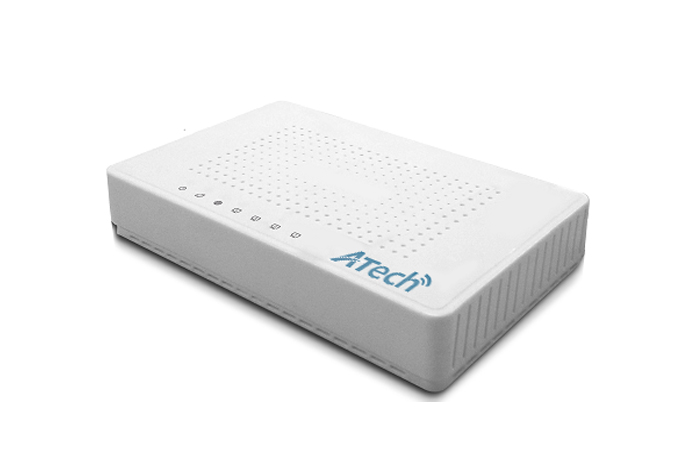

AT-GP8002V is a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.5Gbps, one GPON port and one Gigabit Ethernet port, the AT-GP8002V provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences. And it provides cost-effective VoIP services with FXS Port.
*Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km
*Fiber access and gigabit port provide incredibly fast transfer speeds
*Supports OMCI (ONT Management Control Interface) remote management
*TDM inner transmission, support Native TDM type and CES over GEM
*Pass though T-CONT-GEM port to be in progress and multiple-access BDA and QoS manage.
*Easy Setup Assistant provides quick & hassle free installation
|
General |
|
|
GPON Standards |
ITU-T G.984 |
|
Distance |
20Km Max |
|
Data Rates |
Upstream:1.25Gbps, Downstream:2.5Gbps |
|
VOIP Standards |
SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
|
Hardware |
|
|
Interfaces |
1 x SC/APC GPON Port 1x 10/100Mbps LAN Port 1x 10/100/1000Mbps LAN Port 1 x FXS Port |
|
Buttons |
Power ON/OFF Button, Reset Button |
|
Power Supply |
DC 12V 0.5A |
|
Dimensions (W X D X H) |
165 x 105x 28mm |
|
Software Features |
|
|
WAN Type |
Dynamic IP/Static IP/PPPoE |
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
Quality of Service |
WMM, Bandwidth Control |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
|
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
|
Firewall Security |
DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|
VOIP Features |
One RJ-11 FXS ports for connecting to analog telephones Call forwarding, Call waiting, Call block, 3-way conference call, etc. |
|
Management |
Access Control Local Management Remote Management |
|
Internet Protocol |
IPv4, IPv6 |
|
Environment |
|
|
Operating Temperature |
0°C~40°C (32°F~104°F) |
|
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
|
Relative Humidity |
10%~90%, non-condensing |
|
Storage Humidity |
5%~95%, non-condensing |
|
Certifications |
CE, RoHS |
|
Package Contents |
|
|
Package Contents |
1 x GPON Router 1 x Quick Installation Guide 1 x Power Adapter 1 x Ethernet Cable |
