Model: AT-WR857
1. Introduction
AT-WR857 is a router supporting IEEE 802.11 b/g/n standards with 4 connectors, which has a WAN port and 3 LAN ports. This is a low cost compact product designed with SDK.
1.1 Description
AT-WR857 is designed to operate 2.4GHz frequency band, it applies a highly integrated chip MT7628NN with 300Mbps PHY rate supporting. It fully complies with traditional IEEE802.11n and IEEE802.11b/g.
1.2 Features
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: (20MHz) MCS0-7，support up to 72Mbps
(40MHz) MCS0-7，support up to 150Mbps
Peak Rate: 300Mbps
Security support 64/128 WEP, WPA, WPA2, TKIP, AES
Support 2.4GHz frequency bands in operation
DC 5V/1A Outside Power Supply
Antenna configuration : 2 external antennas for 5dBi
Support software FAE for custom
Simple fashion appearance
Product Information
General
|
Standard |
IEEE802.11b/g & 802.11n (2T2R mode) |
|
Operating Frequency |
2.412GHz ~ 2.484GHz (channel 1 – 14) |
|
Protocols |
802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM |
|
Security |
WPA/WP2, 64/128/152-bit WEP |
|
Transmit output Power |
11b: 18±2.0dBm ; 11g: 15±2dBm |
|
Receive Sensitivity |
11b:-82dBm @ 11Mbps; 11g:-69dBm @ 54Mpbs |
|
802.11n: (HT20), -68dBm@MSC7 ; 802.11n: (HT40),-64dBm@MSC7 |
|
|
Operating Voltage |
5.0V DC ± 5% |
|
Operating current |
750mA（Input 5V） |
Hardware
|
CPU |
MT7628NN |
|
Flash |
8M |
|
SDRAM |
32M |
|
Antenna |
2×External non-detachable Omni-directional antenna for 5dBi |
|
Power Supply |
Input: AC 100-240V, 50/60Hz Output: DC 5V 1A |
|
Interfaces |

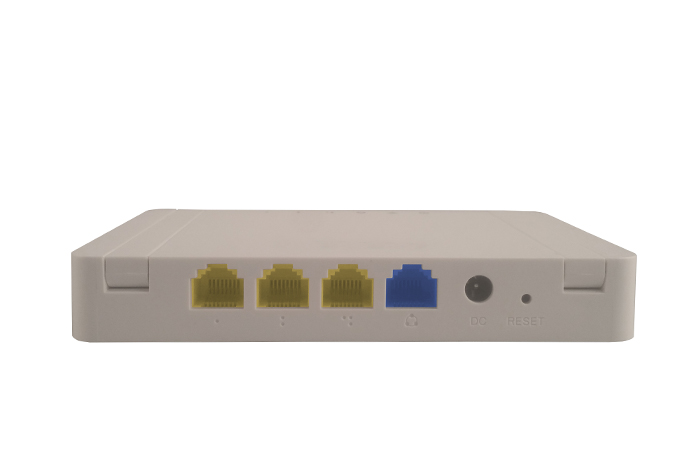

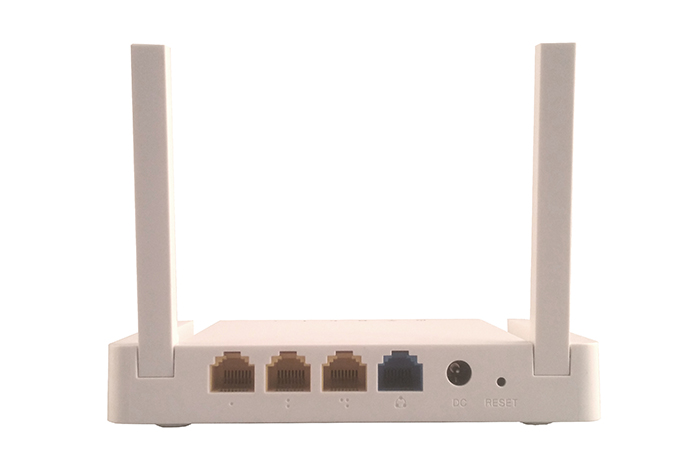

1×WAN 3×LAN Port 1×Power Connector |
|
Button |
1×Reset Button |
|
LED |
PWR,WIFI,WAN,LAN1-3 |
|
Dimensions(L×W×H) |
142mm×91mm×24mm(except the antennas) |
Software
|
Version |
English |
|
Support System |
MTK SDK |
|
IP Address |
10.10.10.254 |
|
UserName/Password |
admin/admin |
Package
|
Package Contents |
1 x 300M Wireless Router 1 x Power Adapter 1 x Cable 1 xQIG & Warranty card |
Temperature
|
Operating temperature |
0ºC—50ºC |
|
Storage temperature |
-20ºC—85ºC |
|
Operating humidity |
20%—80%(non-condensing) |
|
Storage relative humidity |
20%—80% |
|
Certification |
RoHS |
