Model: AT-WR856

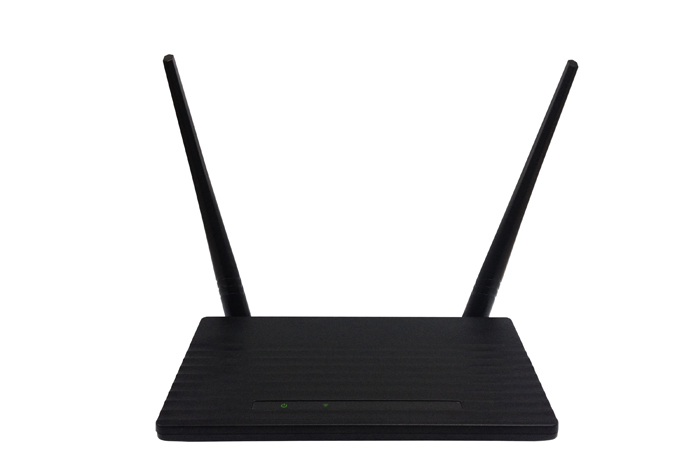

1. Introduction
AT-WR856&AT-WR856U is a router supporting IEEE 802.11 b/g/n standards with 5 connectors, which has a WAN port and 4 LAN ports. And it has a USB for sharing file and achieving off-line storage. This is a low cost compact product designed with Open-WRT.
1.1 Description
AT-WR856&AT-WR856U is designed to operate 2.4GHz frequency band, it applies a highly integrated chip MT7620N with 300Mbps PHY rate supporting. It fully complies with traditional IEEE802.11n and IEEE802.11b/g.AT-WR856U has a USB connector supporting USB2.0 standard.
1.2Features
* 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
* 802.11n: (20MHz) MCS0-7，support up to 72Mbps
(40MHz) MCS0-7，support up to 150Mbps
* Peak Rate: 300Mbps
* Security support 64/128 WEP, WPA, WPA2, TKIP, AES
* Support 2.4GHz frequency bands in operation
* DC 9V/1A Outside Power Supply
* Antenna configuration : 2 external antennas for 5dBi
* Support software FAE for custom
* Simple fashion appearance
Product Information
General
|
Standard |
IEEE802.11b/g & 802.11n (2T2R mode) |
|
Operating Frequency |
2.412GHz ~ 2.484GHz (channel 1 – 14) |
|
Protocols |
802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM |
|
Security |
WPA/WP2, 64/128/152-bit WEP, WPS |
|
Transmit output Power |
11b: 18±2.0dBm ; 11g: 15±2dBm |
|
Receive Sensitivity |
11b:-82dBm @ 11Mbps; 11g:-69dBm @ 54Mpbs |
|
802.11n: (HT20), -68dBm@MSC7 ; 802.11n: (HT40),-64dBm@MSC7 |
|
|
USB Standard |
USB2.0 (AT-WR856U) |
|
Operating Voltage |
5.0V DC ± 5% (AT-WR856) / 9.0V DC ± 5% (AT-WR85) |
|
Operating current |
750mA (Input 5V) / 700mA（Input 9V） |
2.2 Hardware
|
CPU |
MT7620N |
|
Flash |
8M |
|
SDRAM |
64M |
|
Antenna |
2XExternal non-detachable Omni-directional antenna for 5dBi |
|
Power Supply |
Input: AC 100-240V, 50/60Hz Output: DC 5V 1A / DC 9V 1A |
|
Interfaces |

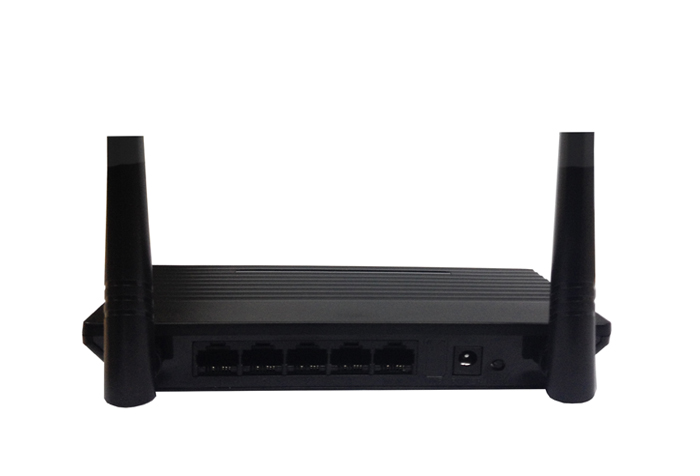

1×WAN 4×LAN Port 1×USB Connector 1×Power Connector |
|
Button |
1×Combine WPS and Reset Button |
|
LED |
PWR,USB,WIFI,WAN,LAN1-4（Green） |
|
Dimensions(L×W×H) |
168mm×139mm×26mm(except the antennas) |
2.3Software
|
Version |
English |
|
Support System |
Open-WRT |
|
IP Address |
192.168.2.1 |
|
UserName/Password |
root/admin |
3. Package
|
Package Contents |
1 x 300M Wireless Router 1 x Power Adapter 1 x Cable 1 xQIG & Warranty card |
4. Temperature
|
Operating temperature |
0ºC—50ºC |
|
Storage temperature |
-20ºC—85ºC |
|
Operating humidity |
20%—80%(non-condensing) |
|
Storage relative humidity |
20%—80% |
