HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

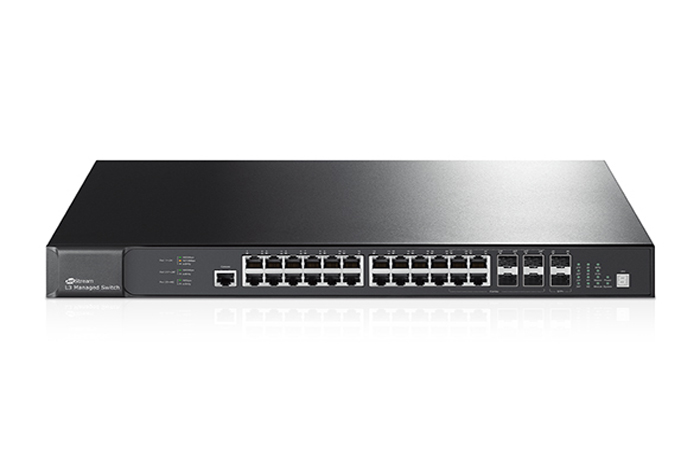

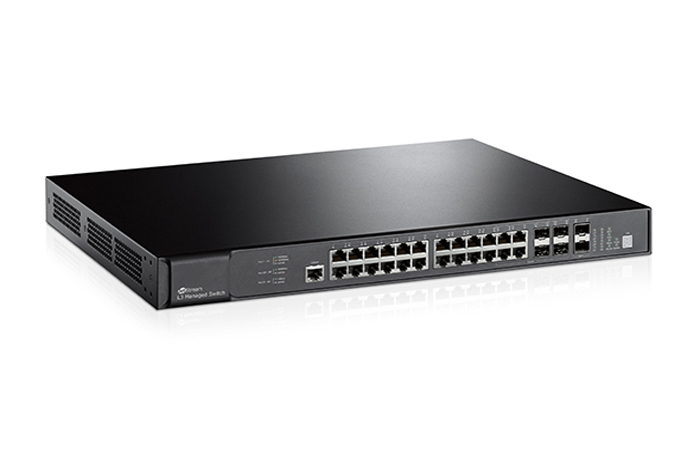

Interface

24 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

4 combo gigabit SFP Slots

Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)

1 Console Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

10GBASE-LR

10GBASE-SR

Fan Quantity

4

Power Supply

100~240VAC, 50/60Hz

Dimensions (W X D X H)

17.32*13*1.73 in.(440*330*44 mm)

PHYSICAL STACKING

Stacking Speed (Per Port)

20 Gbps (Full-Duplex)

No. of Units Per Stack

8

Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables

TXM431-SR

TXM431-LR

TXC432-CU1M

TXC432-CU3M

Max Number of Stacking Ports Installable

2 SFP+

PERFORMANCE

Switching Capacity

Up to 128Gbps for a standalone switch

Bandwidth/Backplane

Up to 320Gbps when 8 units in the stack

Packet Forwarding Rate

Up to 95.2Mpps for a standalone switch

MAC Address Table

32K

Packet Buffer Memory

16 Mbits

Jumbo Frame

10240 Bytes

Number of Routes

12K

Number of Static Routes

256

Number of IP Interfaces

128

SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

L2 Features

IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loop back detection

802.3x Flow Control

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP

Access Control List

L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID

Time Range Based

Security

IP-MAC-Port-VID Binding

IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN

DoS Defence

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

L3 Features

Wire-speed IP forwarding

Static Routing

RIP v1, v2

OSPF v2

ECMP

PIM-SM/PIM-DM/IGMP

DHCP Server/Relay

ARP Proxy

VRRP

Management

Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs

RMON (1, 2, 3, 9 groups)

DHCP/BOOTP Client, DHCP Snooping, DHCP Option82

CPU Monitoring

Port Mirroring

Time Setting: SNTP

Integrated NDP/NTDP feature

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS

Dual Image

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
