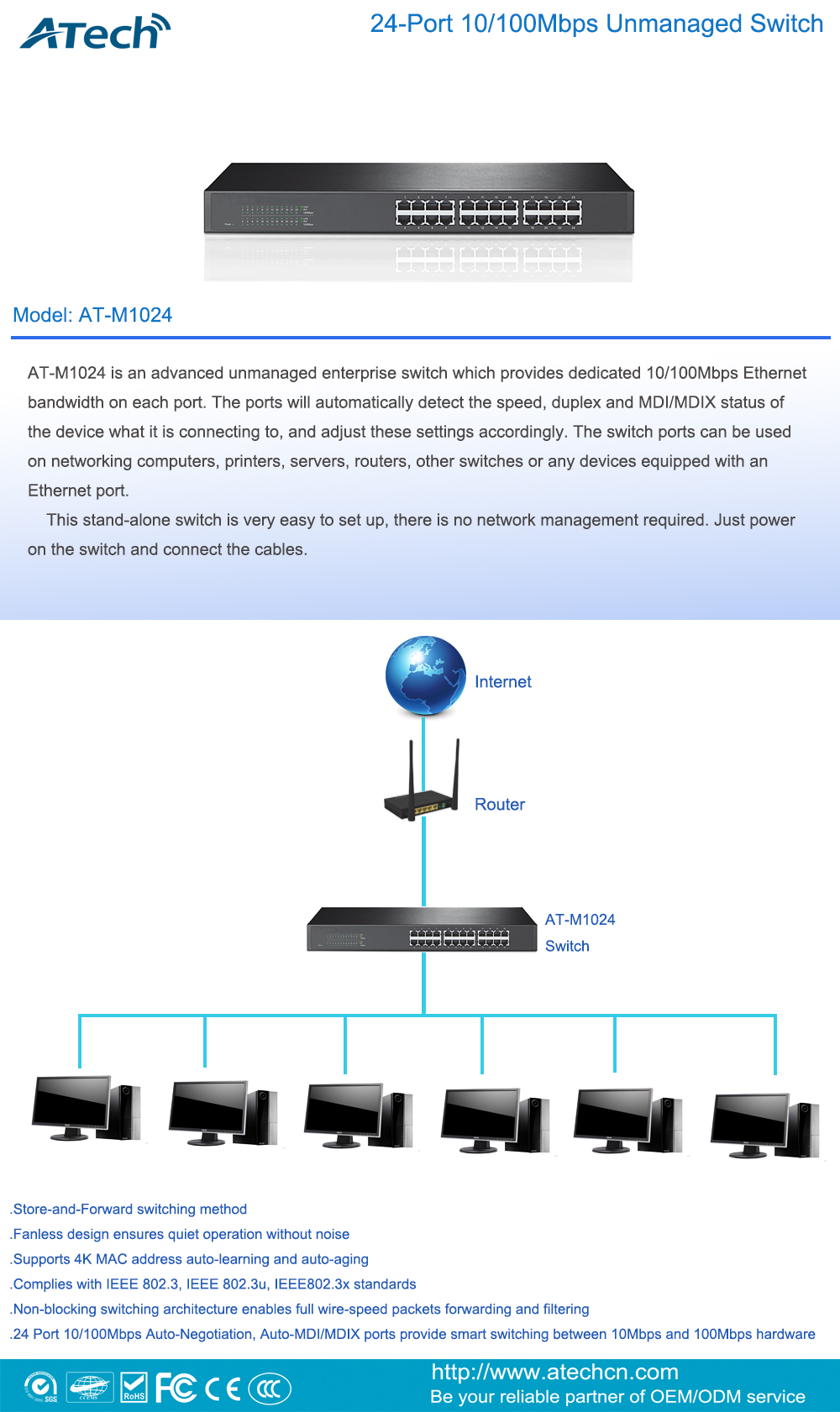

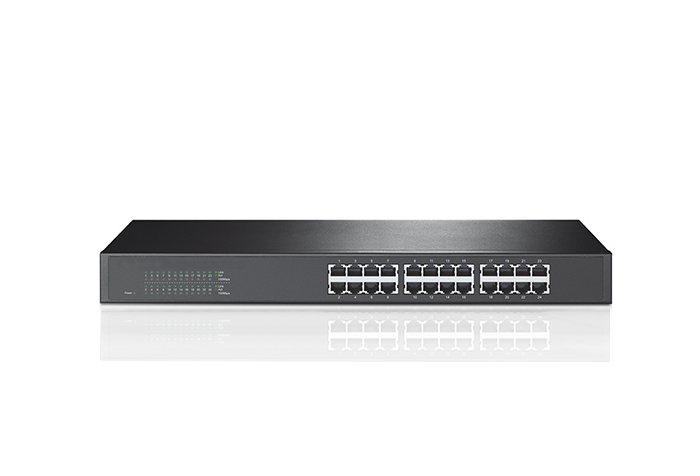

24-Port 10/100Mbps Unmanaged Switch

Model: AT-M1024

  • LEARN IT
  • FEATURES
  • SPECS
  • PICTURE
  • Innovative energy-efficient technology saves power up to 75%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 4.8 Gbps Switching Capacity
  • Store and forward Switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
  • Plug and Play design simplifies installation
  • Fanless design to make sure it works quietly
    •

    HARDWARE FEATURES

    Standards and Protocols

    IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

    Interface

    24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

    Network Media

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

    100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

    Fan Quantity

    Fanless

    Power Consumption

    Maximum: 3.53W (220V/50Hz)

    Power Supply

    100-240VAC, 50/60Hz

    PERFORMANCE

    Switching Capacity

    4．8Gbps

    MAC Address Table

    8K

    Packet Forwarding Rate

    3．57Mpps

    Jumbo Frame

    10KB

    Transfer Method

    Store-and-Forward

    OTHERS

    Certification

    FCC, CE, RoHS

    Package Contents

    24-Port 10/100Mbps Rackmount Switch

    Power Cord

    Installation Guide

    Rackmount Kits

    Rubber Feet

    System Requirements

    Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS,

    NetWare®, UNIX® or Linux.

    Environment

    Operating Temperature: 0℃~40℃ (32℉~104℉);

    Storage Temperature: -40℃~70℃ (-40℉~158℉);

    Operating Humidity: 10%~90% non-condensing;

    Storage Humidity: 5%~90% non-condensing
