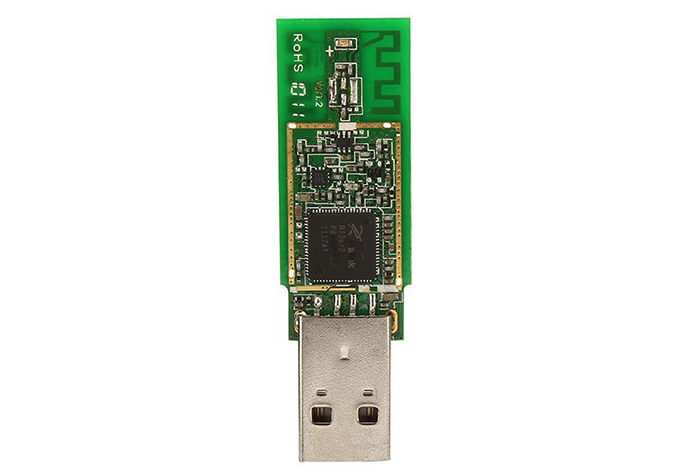

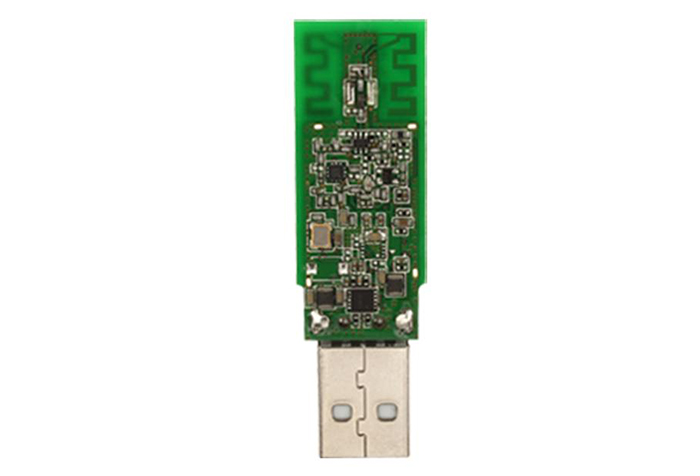

Model: ATO-8R
Main Features
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ; 802.11n: Support PHY rate
Up to 300Mbps.
Multiple BSSID support.
Power Management
WPS, PIN, PBC
Wi-Fi Certification: 802.11 b/g/n, WPA, WPA2, WMM , WMM-PS; WHQL, Cisco CCX
|
Main Chipset |
Ralink RT3072 |
|
Host interface |
USB 2.0/1.1 Type A |
|
LED |
Link/ Activity |
|
Antennas |
PCB antennas or external antennas via I-PEX RF connector. |
|
Antenna Impedance |
50 ohmat2.4GHz |
|
Operation Frequency |
2412~2483.5 MHz |
|
Typical Transmit Power |
802.11b (CCK) 11Mbps: 19+/-1dBm |
|
Typical Transmit Power |
802.11g (OFDM) 54Mbps: 15+/-1dBm |
|
Typical Transmit Power |
802.11n (HT20atMCS7), 15+/-1dBm |
|
Typical Transmit Power |
802.11n (HT40atMCS7),15+/-1dBm |
|
Receive Sensitivity |
802.11b: -88+/-1dBm |
|
Receive Sensitivity |
802.11g: -73+/-1dBm |
|
Receive Sensitivity |
802.11n (HT20), -70+/-1dBm |
|
Receive Sensitivity |
802.11n (HT40), -68+/-1dBm |
|
Operation System |
Windows CE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X |
|
Security |
WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i Cisco CCS V1.0, 2.0 and V3.0 Compliant |
|
Voltage Range/Current |
DC 5.0V ± 5% / <270mA |
|
Operating Temperature |
0°C - 50°C |
|
Storage Temperature |
-20°C - 70°C |
|
Operating Humidity |
RH 95% (Non-Condensing) |
|
Storage Humidity |
RH 95% (Non-Condensing) |
|
Physical Specification |
|
|
Dimensions |
55.6x17x4.5mm |
