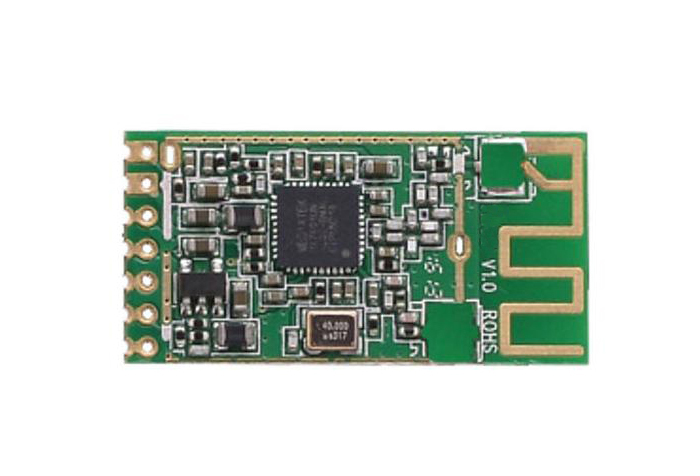

Model: ATO-7M01
USB WIFI module
USB2.0 interface
150Mbps peak rate
2.4GHz IBS band
IEEE 802.11b/g/n
Main Features:
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
Peak rate 150Mbps,
Power management
Certification
Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS
WHQL, Cisco CCX,
FCC ,CE ,RoHS
Application：
IP TV
IP Camera
Set Top Box
HDMI, Multimedia Player
Smart home
Sound Box
Laptop
Desktop etc
|
General |
||
| Product model |
ATO-7M01 |
|
|
Device Interface |
USB 2.0, 7 PCB Semi-holes |
|
|
RF output |
External antenna Via I-PEX MHF receptacle or Built-in On Board |
|
|
Dimensions |
28x14mm |
|
|
Weight |
1.75g |
|
|
WLAN |
||
|
Operation Frequency |
2412~2483.5MHz, ISM band (Depends on country region) |
|
|
Operation Channel |
Ch1~14 (Depends on country region) |
|
|
Protocol |
802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
|
|
Security |
64/128 WEP, WPA/WPA2, WFA, WPS2.0, WAPI |
|
|
Others |
QoS: WFA,WMM,WMM PS; |
|
|
WiFi Direct |
||
|
RF Characteristics (Typical) |
||
|
Antenna |
External antenna Via I-PEX MHF receptacle |
|
|
Transmit Power |
802.11b (CCK) 11Mbps: 18+/-1dBm |
|
|
802.11g (OFDM) 54Mbps: 16+/-1dBm |
||
|
802.11n (HT20@MCS7), 14+/-1dBm |
||
|
802.11n (HT40@MCS7),14+/-1dBm |
||
|
Receive Sensitivity |
802.11b: -88+/-1dBm;802.11g: -72+/-1dBm |
|
|
802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -68+/-1dBm |
||
|
DC Characteristic (Typical) |
||
|
Operating Voltage |
3.3VDC +/-5% |
|
|
Current consumption |
Normal operation (Average) |
<80mA |
|
Sleep mode |
1.5 mA |
|
|
TX HT40,MCS7@16dBm |
210 mA |
|
|
TX CCK |
250 mA |
|
|
RX Listen |
6 mA |
|
