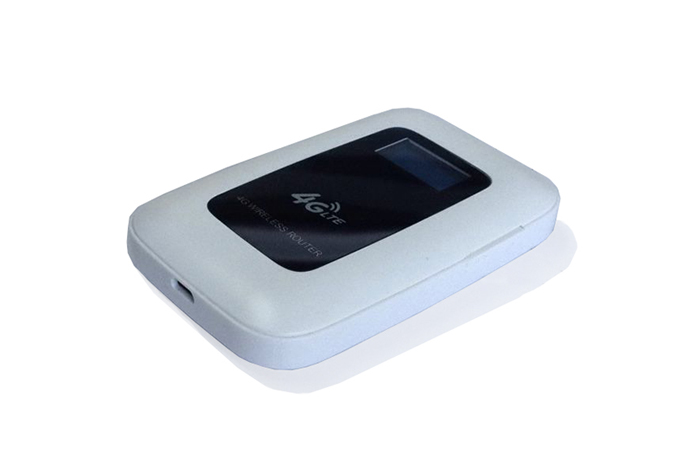

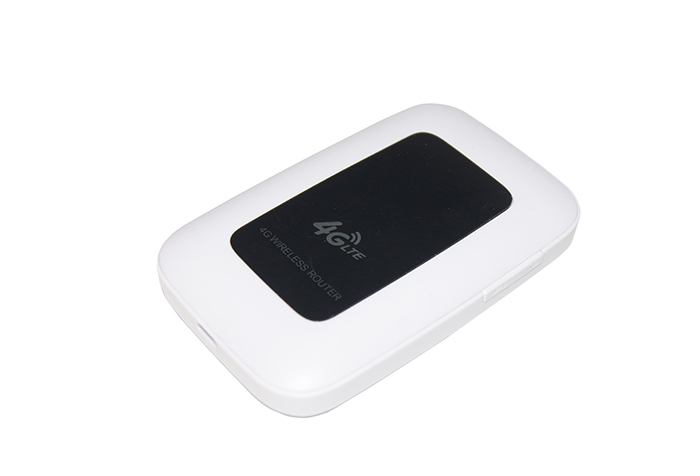

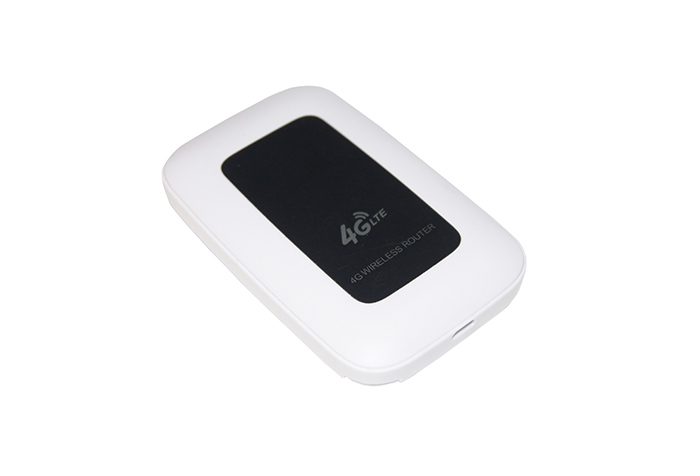

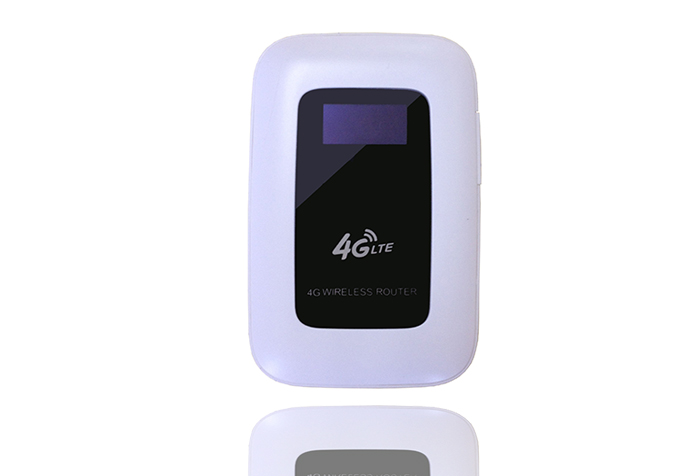

Model: AT-G4R70
|
Model |
4G LTE Router AT-G4R70 WiFi hotspot |
|
|
Platform |
Qualcomm MDM9215(MDM9615) |
|
|
SA Time |
6.2014 |
|
|
Band/Mode
|
CDMA:1x-EVDO(BC0) (MDM9615) TDD-LTE:B38/39/40/B41 FDD-LTE: B1/B2/B3/B5/B7 TD-SCDMA: B34/39 UMTS:B1/2/5 GSM Quad Band |
MDM9615 can support CDMA 1X-EVDO
|
|
Type |
Portable hotspot device |
|
|
Size(mm) |
TBD |
|
|
Weight(g) |
TBD |
|
|
System memory |
NandFlash 2Gb+DDR SDRAM 1Gb |
|
|
CPU (MHz) |
Cotex-A5 550Mhz |
MDM9215/MDM9615 |
||||
|
Air interfaces |
GSM/GPRS/EDGE |
DTM (simple class A), multislot class 12 |
||||
|
CDMA:1x-EVDO(MDM9615) |
EVDO Rev.B: up to 14.7Mbps DL / 5.4Mbps UL EVDO Rev.A: up to 3.1Mbps DL / 1.8Mbps UL" |
|||||
|
TD-SCDMA |
R5 1.28 TDD-HSDPA 2.8 Mbps DL R7 1.28 TDD-HSUPA 2.2 Mbps UL R8 1.28 TDD-HSPA+ 4.2 Mbps DL / 2.2 Mbps UL |
|||||
|
UMTS |
R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL |
|||||
|
TDD-LTE |
R8 Cat3 61 Mbps DL / 18Mbps UL |
|||||
|
FDD-LTE |
R8 Cat3 100 Mbps DL / 50Mbps UL |
|||||
|
Memory |
||||||
|
System memory |
NandFlash 2Gb+DDR SDRAM 1Gb |
|||||
|
External memory |
Option Micro-SD |
|||||
|
Frequency Band |
2.4GHz |
|||||
|
802.11b/g/n |
Up to 150Mbps |
Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz)" |
||||
|
User amount |
Max to 10 |
最大10个用户 |
||||
|
AP Features |
Security modes |
Open WEP WPA-PSK WPA2-PSK WPA-WPA2 Hybrid mode (Mixed Mode) TKIP-CCMP Hybrid mode (Mixed Mode) WPS 2.0 Hidden SSID supported |
||||
|
Concurrency (FC quality for LE1.0) |
AP-STA mSSID (AP-AP) – up to 2 SSID's STA-STA communication block/allow between two SSIDs Independent security modes (Open, WEP, WPA, WPA2, WAPI) for concurrency modes above except WEP in both interfaces Channel of operation - same channel |
|||||
|
Other |
QoS and PS WMM WMM-PS/uAPSD ERP protection Coexistence LTE coexistence (static channel selection) Data Switching/Forwarding Switching of packets amongst clients Support for forwarding data to and from WAN VPN Pass-through |
|||||
|
|
Interface |
|||||
|
|
Antenna |
4G/3G/2G Main antenna 4G MIMO/3G Rx Diversity antenna WiFi antenna |
Internal |
|||
|
|
LCD |
1.46" 128×128 OLED |
Option |
|||
|
|
USB |
Micro USB |
USB 2.0 High Speed |
|||
|
|
SIM/USIM Card slot |
Yes Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 |
||||
|
|
Micro-SD Card slot |
N/A |
||||
|
|
尺寸 L*H*W （mm) |
109*60*20 |
||||
|
|
Power |
Yes |
||||
|
|
WPS |
Yes |
||||
|
|
Reset |
Yes |
||||
|
|
Lion battery |
2100mAh li-on battery |
||||
|
|
Electrical performance spec |
|||||
|
|
RF Power Spec |
Class 3 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900" |
||||
|
|
Power supply input |
Yes |
3.4-4.2 V 充电输入（5V-1A） |
|||
|
|
Power supply output |
NO |
|
|||
|
|
Environmental reliability test condition |
|||||
|
|
Normal Operation |
0°C to +45°C |
||||
|
|
Restricted Operation |
-10°C to +55°C |
||||
|
|
Storage |
-20°C to +70°C |
||||
|
|
Compliance |
|||||
|
|
ROHS |
YES, EU RoHS |
||||
|
|
JATE |
Yes |
||||
|
|
TELEC |
Yes |
||||
|
|
PSE |
YES |
||||
|
|
others |
depend on customer required |
||||
