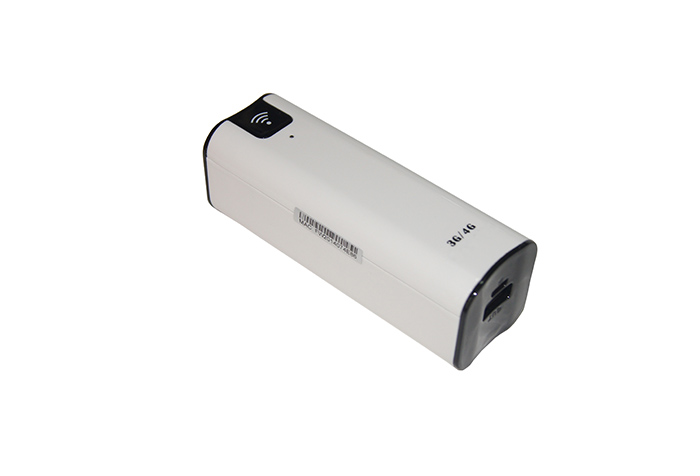

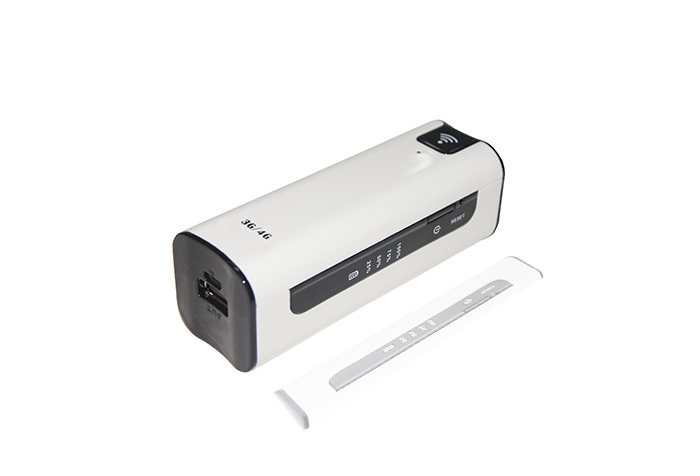

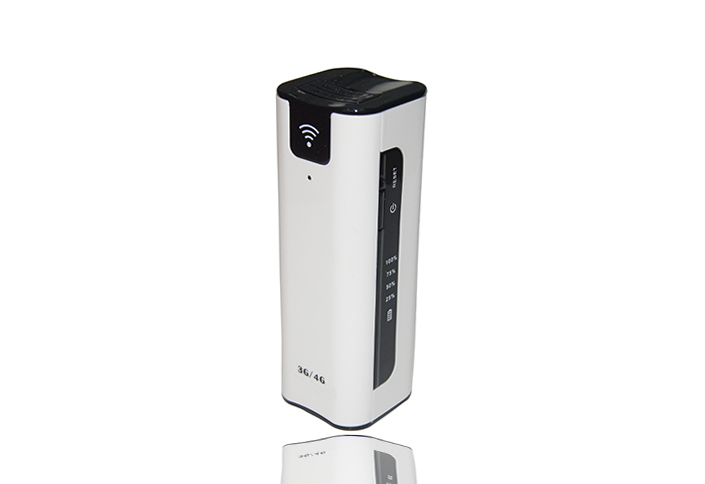

Model: AT-G3R71
|
Basic Specifications |
|
|
|
Definition |
WCDMA 3G MIFI with portable source |
|
|
Characteristics |
Portable source/3G router/Wireless router |
|
|
Production Time |
2014.4 |
|
|
Dimension |
34*34*97mm |
|
|
PCBA Dimension |
90*30.1mm |
|
|
Battery Capacity |
18650 cell/2200mAh |
|
|
Battery Output |
5V/1A |
|
|
SIM Card Slot |
Standard SIM Card,Push-Push |
|
|
T Card Slot |
Push-Push |
|
|
Button |
Power Button/WIFI Button |
|
|
USB Port |
USB type-A(portable source out) |
|
|
Indicator Light |
Charge Single-Colour*1, Battery Capacity Single-Colour*4, Signal Double-Colour*1 |
|
|
Hardware Specifications |
||
|
Router |
||
|
WIFI |
802.11 b/g/n |
|
|
Memory |
SPI Flash+SDRAM |
8MB+64MB |
|
Antenna |
Built-In |
SMD Ceramic Antenna |
|
MODEM |
||
|
Memory |
NAND+LPDDR |
1Gb+256Mb |
|
2G/2.5G |
GSM/GPRS/EDGE |
1900MHz/1800MHz/900MHz/850MHz |
|
3G |
UMTS |
Band1/2/8: 2100MHz/1900MHZ/900MHz |
|
DL/UL speed |
7.2/5.76Mbps |
|
|
Antenna |
Built-In |
Bracket+Stainless Steel |
|
Software Function |
||
|
Modem |
AT Command，Data Transmission, SMS，Wake，Sleep，Reset |
|
|
Firmware |
OS |
Windows，Linux，MAC |
|
Router |
DHCP Server，NAT，Firewall，DNS |
|
|
Web Server |
ISP Settings |
|
|
Network Storage |
support SAMBA |
|
|
WIFI Configuration |
SSID Settings, Channel Mode Settings, Bandwidth Settings, Encryption Type, Password Settings |
|
|
WAN Settings |
Dial Type, Usename/Password, DNS |
|
|
DHCP Server Settings |
IP Address, Subnet Mask, Default Gateway, DNS, IP Binding |
|
|
Running State |
IP Address, Subnet Mask, Gateway, DNS, Connect Time,UL/DL Data Packet |
|
|
Security Settings |
Firewall, Port Forwarding |
|
|
System |
Reset, Reboot, Update ROM |
|
