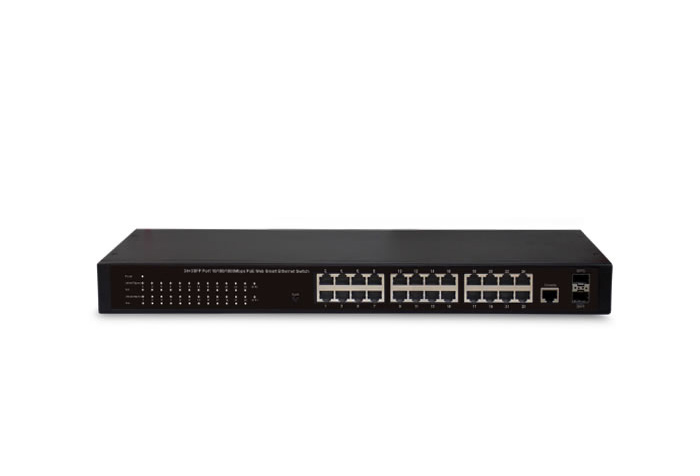

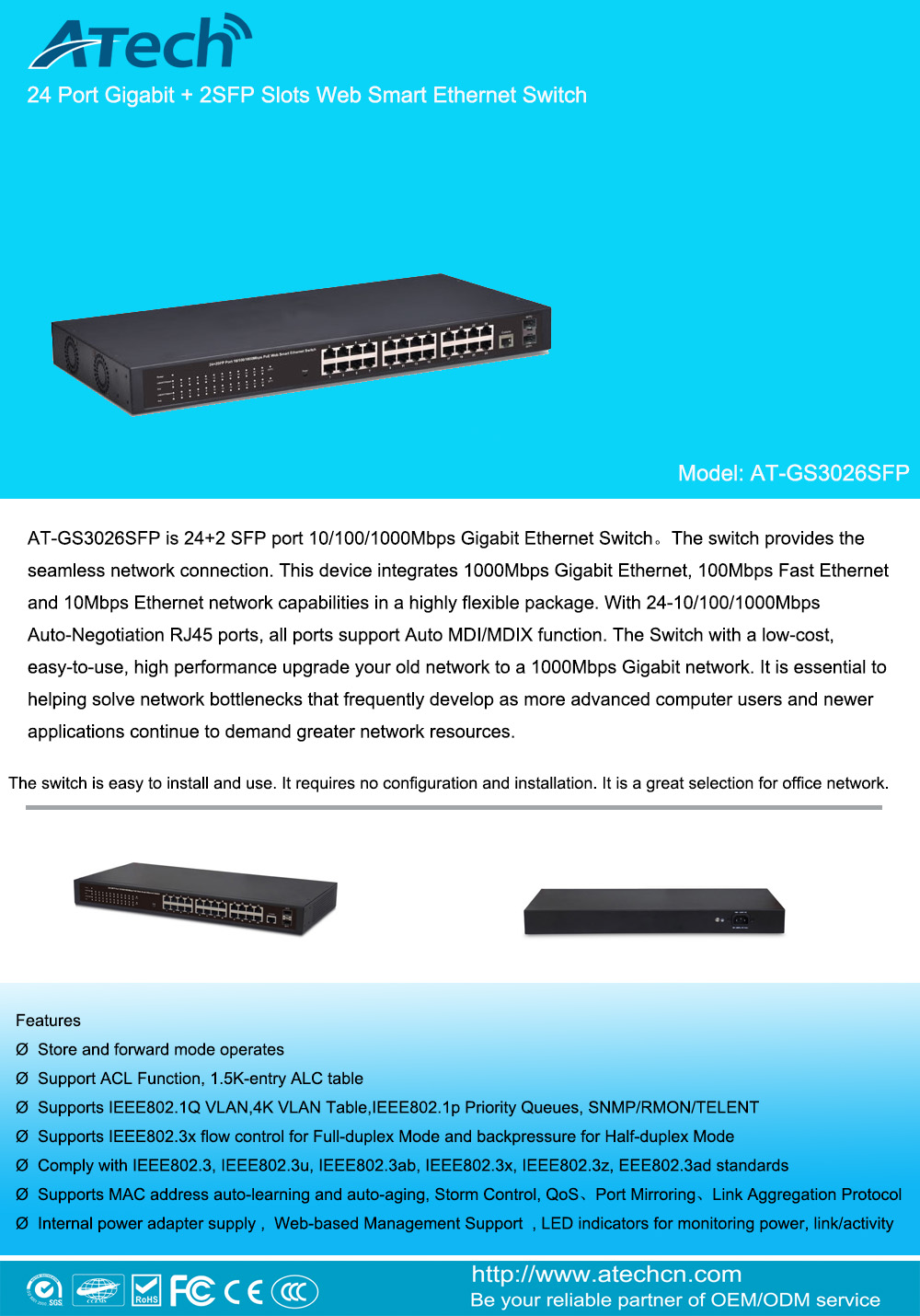

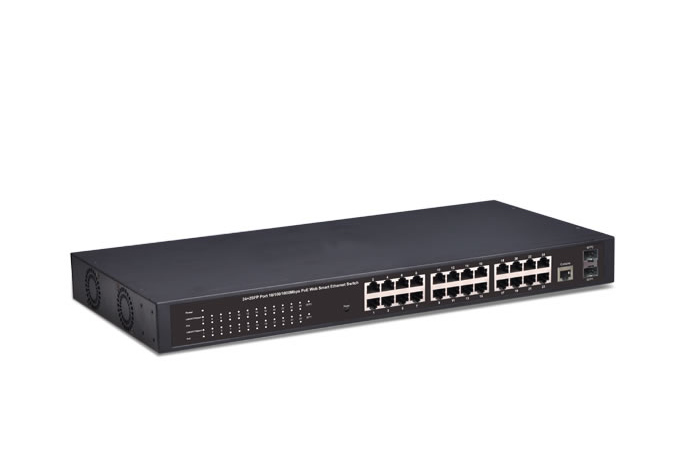

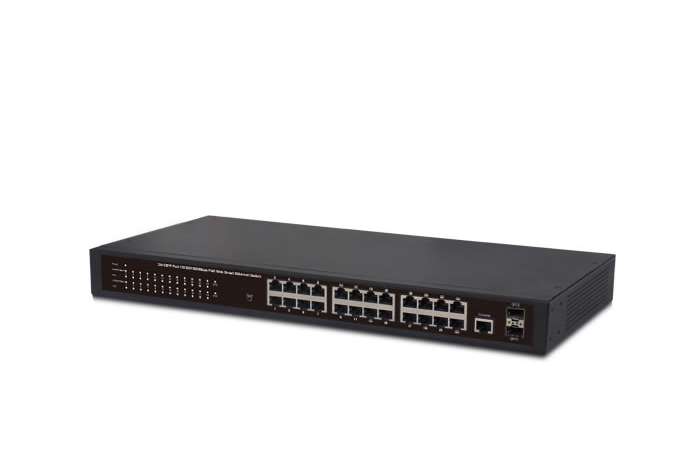

Model: AT-GS3026SFP
AT-GS3026SFP is 24+2 SFP port 10/100/1000Mbps Gigabit Ethernet Switch。The switch provides the seamless network connection. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. With 24-10/100/1000Mbps Auto-Negotiation RJ45 ports, all ports support Auto MDI/MDIX function. The Switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000Mbps Gigabit network. It is essential to helping solve network bottlenecks that frequently develop as more advanced computer users and newer applications continue to demand greater network resources.
The switch is easy to install and use. It requires no configuration and installation. It is a great selection for office network.
Ø Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, EEE802.3ad standards
Ø Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
Ø Supports MAC address auto-learning and auto-aging
Ø Store and forward mode operates
Ø Supports IEEE802.1Q VLAN,4K VLAN Table
Ø Support IEEE802.1p Priority Queues
Ø Support ACL Function, 1.5K-entry ALC table
Ø Support Storm Control
Ø Support QoS、Port Mirroring、Link Aggregation Protocol
Ø LED indicators for monitoring power, link/activity
Ø Web-based Management Support

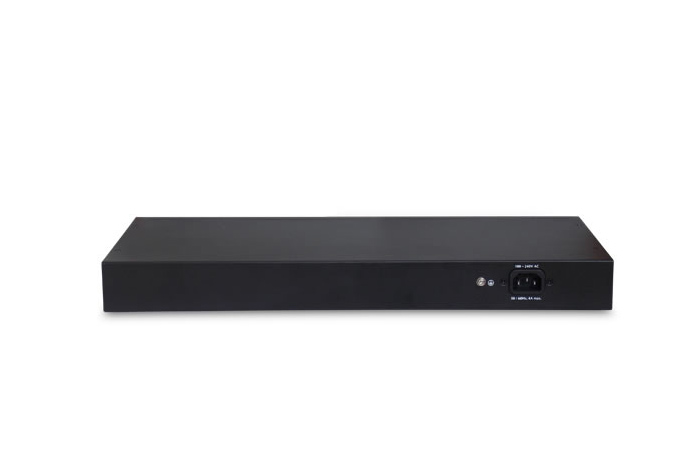

Ø Internal power adapter supply
Hardware Specification
Software Specification
|
System |
IP Configuration(IPV4、IPV6) |
|
User Configuration |
|
|
Time Settings(SNTP) |
|
|
Log Management |
|
|
SNMP Management(V2) |
|
|
RMON |
|
|
Port |
Port Configuration |
|
Llink Aggregation(static、Lacp) |
|
|
Port Mirroring |
|
|
Jumbo Frame |
|
|
Port Error Disabled Configuration |
|
|
Vlan |
Port based VALN |
|
Protocol based VLAN |
|
|
IGMP |
IGMP Snooping（V2、V3） |
|
Multicast group（256） |
|
|
STP |
IEEE 802.1D STP |
|
IEEE 802.1W RSTP |
|
|
IEEE 802.1S MSTP |
|
|
Security |
Broadcast / Uncast / Multicast Storm Control |
|
IEEE 802.1x |
|
|
DHCP Snooping（IP、MAC、Port） |
|
|
ACL |
MAC-Based ACL |
|
MAC-Based ACE |
|
|
IPv4-Based ACL |
|
|
IPv4-Based ACE |
|
|
QoS |
WRR (Weighted Round Robin) |
|
Port based QoS |
|
|
IEEE 802.1p Class of Service |
|
|
DSCP-based QoS |
|
|
QoS basic mode |
|
|
QoS advanced mode (Policy based) |
|
|
Bandwidth Control |
Ingress Port |
|
Ingress VLAN |
|
|
Egress Port |
|
|
Egress Queue |
|
|
MAC Address Setting |
Staitc Mac Setting |
|
MAC Filtering |
|
|
Dynamic Address Learn/Setting |
|
|
Rma Setting |
|
|
LLDP |
LLDP Port Setting |
|
MED Network Policy |
|
|
Management |
System Status |
|
Pint Test |
|
|
Factory Reboot Switch |
|
|
Backup/Upgrade Manager |
|
|
Configuration Manager |
