Model: AT-GS3010SFP-POE

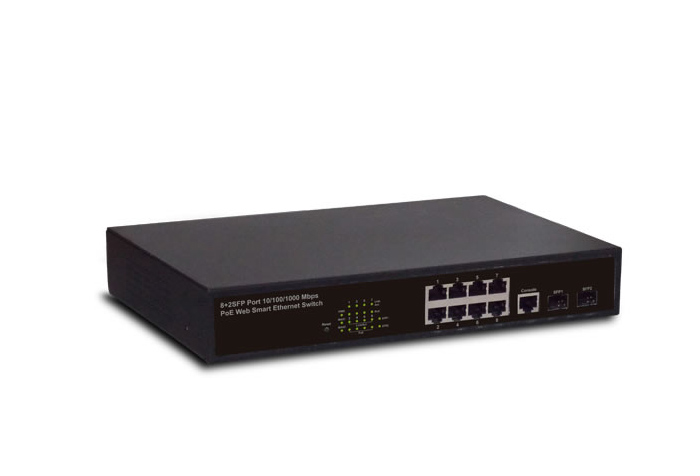

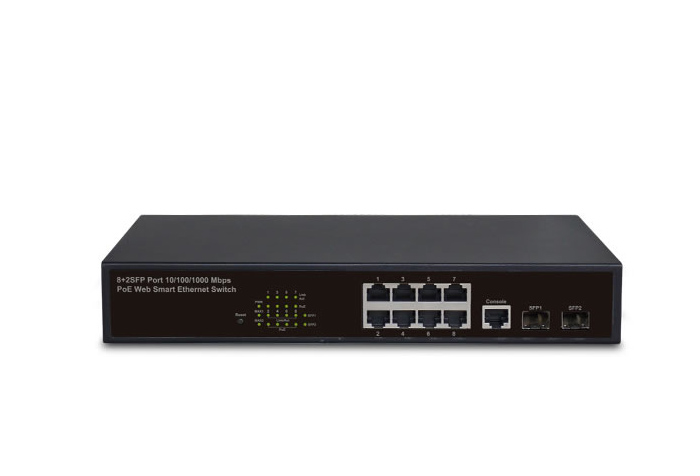

AT-GS3010SFP-POE 8-port+2SFP10/100/1000M POE Switch provides the seamless network connection. It integrates 10/100/1000Mbps Ethernet network capabilities. These POE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
AT-GS3010SFP-POE is web smart switch, and can be configured by web based interface. Including administrator, port management, VLAN setting, each port statistics, trunking setting, QoS setting, security filter, configuration/ backup/recovery, miscellaneous, log out, and so on.
Ø Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab standards
Ø 8x10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Ø Supports PoE power up to 30W for each PoE port
Ø Support the Console port management
Ø Supports All power up to 140W
Ø Supports PoE IEEE802.3at compliant PDs
Ø Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
Ø 8K entry MAC address table of theAT-GS3010SFP-POE with auto-learning and auto-aging
Ø Supports WEB management interface
Ø LED indicators for monitoring power, link, activity and speed

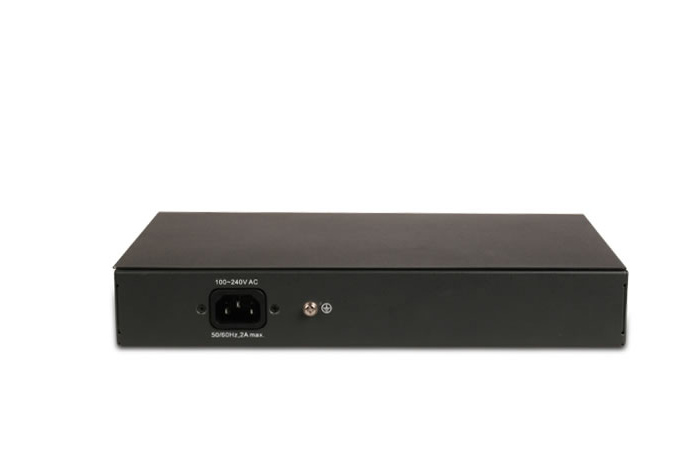

Ø Internal power adapter supply
AT-GS3010SFP-POE |
||
Chipset |
RTL8380M+RTL8231 |
|
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p, IEEE 802.3at, IEEE 802.3af |
||
10BASE-T: UTP category 5 cable (maximum 100m) 100BASE-T: UTP category 5 cable (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
||
Number of Ports |
8 x 10/100/1000Mbps Auto-Negotiation ports |
|
LED indicators |
Port |
Link/Act |
POE |
POE |
|
Other |
Power |
|
Transfer Method |
Store-and-Forward |
|
8K |
||
Switching Capacity |
20 Gbps |
|
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
||
Dimensions (L × W × H) |
280*180*44 mm |
|
Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
