Model: AT-WE713
Introduction

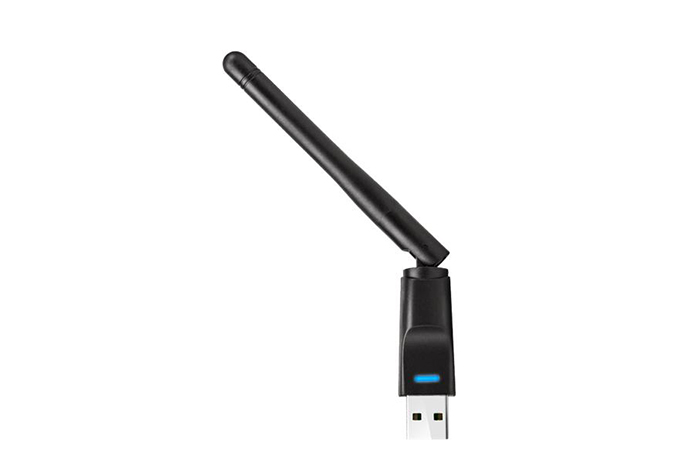

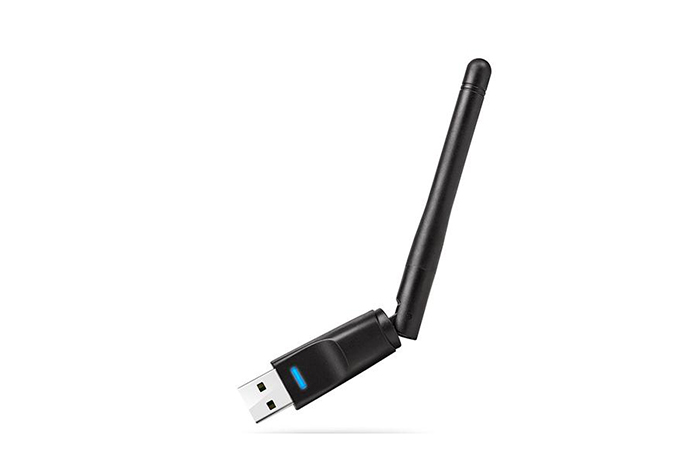

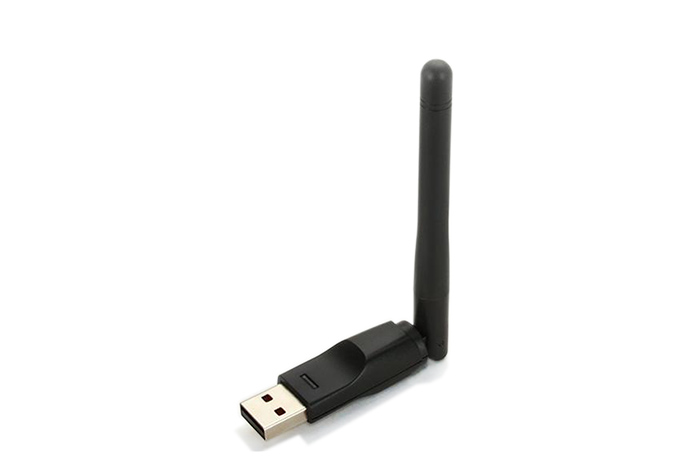

This mini profile WLAN adapter with rotable antenna supporting IEEE 802.11 b/g/n standards with USB connector supporting USB 2.0 interface.
The AT-WE713 is a highly integrated MAC/BBP and 2.4GHz RF/PA/LNA single chip with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n and IEEE802.11b/g feature rich wireless connectivity at high standards, delivers reliable, cost-effective, throughput form an extended distance. The AT-WE713 is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any circumstance. The very small and compact WLAN adapter design is good for wireless connectivity when an external antenna needs.
Features
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: (20MHz) MCS0-7, Support up to 72Mbps
(40MHz) MCS0-7, Support up to 150Mbps
OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
Security support for 64/128 WEP, WPA, WPA2, TKIP, AES
Operates in 2.4GHz frequency bands. Power Management
Software and system Information
|
Operation System |
CPU Supplier |
Driver |
|
Linux 2.4/2.6 |
ARM, MIPSII |
Available |
|
Windows 2000/XP/Vista/7 |
X86 Platform |
Available |
|
Mac OS X 10.3/10.4/10.5/10.6 |
N/A |
Available |
Agency Approval
|
Ready to test |
|
|
CE |
Ready to test |
|
RoHS |
Yes |
Specification Overview
