Model: AT-WE711
Introduction

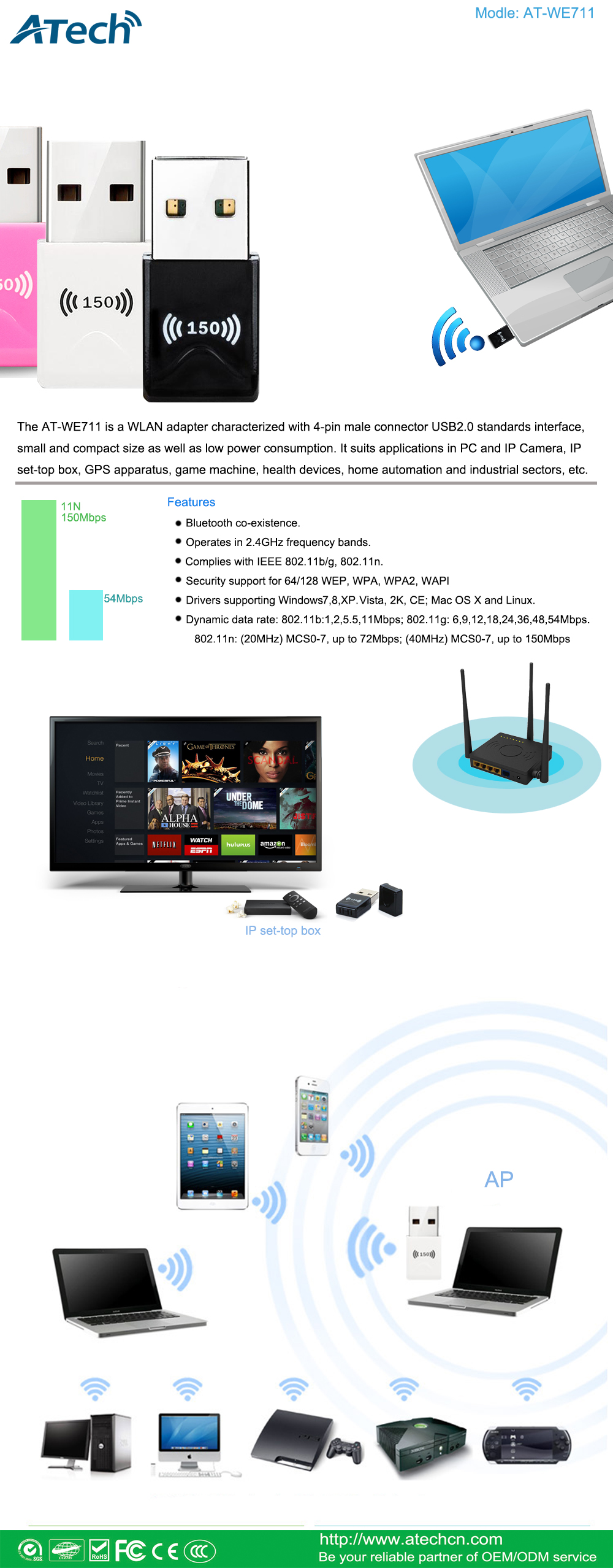

The AT-WE711 is a WLAN adapter characterized with 4-pin male connector USB2.0 standards interface, small and compact size as well as low power consumption. It suits applications in PC and IP Camera, IP set-top box, GPS apparatus, game machine, health devices, home automation and industrial sectors, etc.
Scope
The AT-WE711 WLAN adapter is designed to operate in 2.4GHz frequency and fully complies with 802.11n and IEEE 802.11b/g standards based on 1T1R mode. A Ralink RT3370 MAC/BBP/Transceiver/FEM single chip is used to deliver high-performance of the latest Wi-Fi technology, including software driver support for Microsoft Windows 7, Vista, XP, 2K, CE; Mac OS X and Linux.
Features
* Complies with IEEE 802.11b/g, 802.11n.
* Dynamic data rate: 802.11b:1,2,5.5,11Mbps; 802.11g: 6,9,12,18,24,36,48,54Mbps.
802.11n:(20MHz) MCS0-7, up to 72Mbps; (40MHz) MCS0-7, up to 150Mbps
* Security support for 64/128 WEP, WPA, WPA2, WAPI
* Operates in 2.4GHz frequency bands.
* Drivers supporting Windows 7, XP, Vista, 2K, CE; Mac OS X and Linux.
* Bluetooth co-existence.
Product Information
Hardware Information

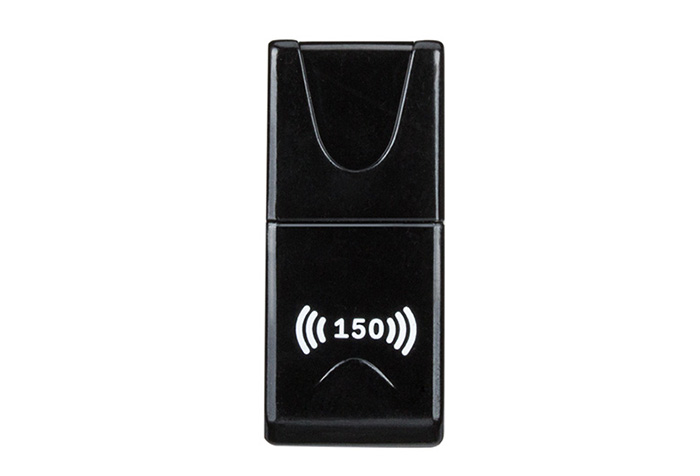

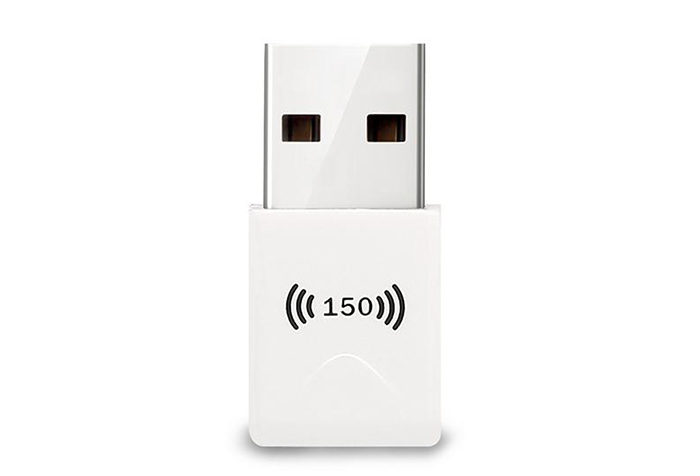

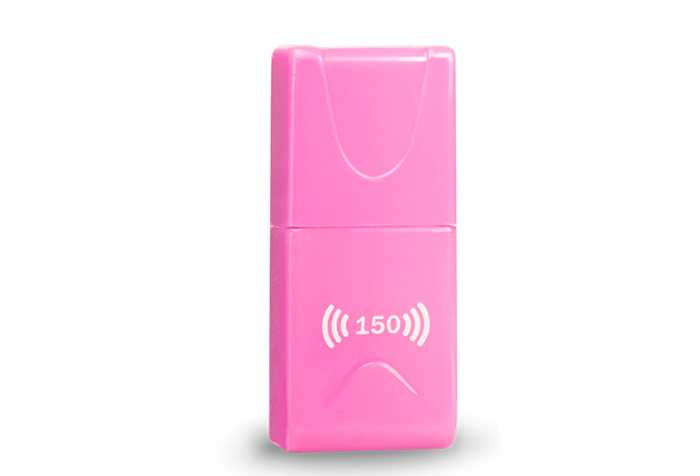

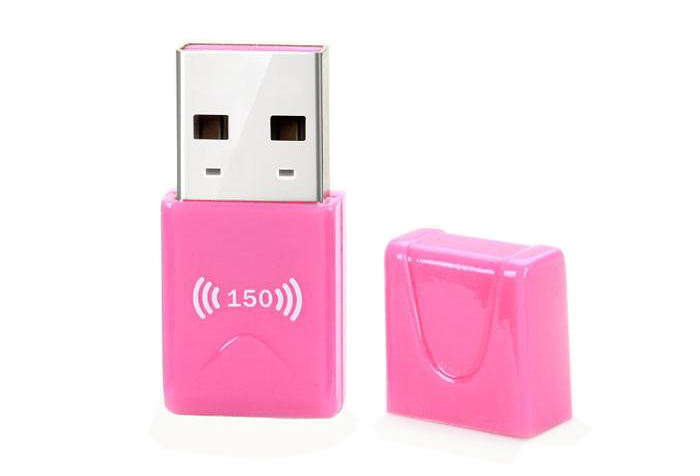

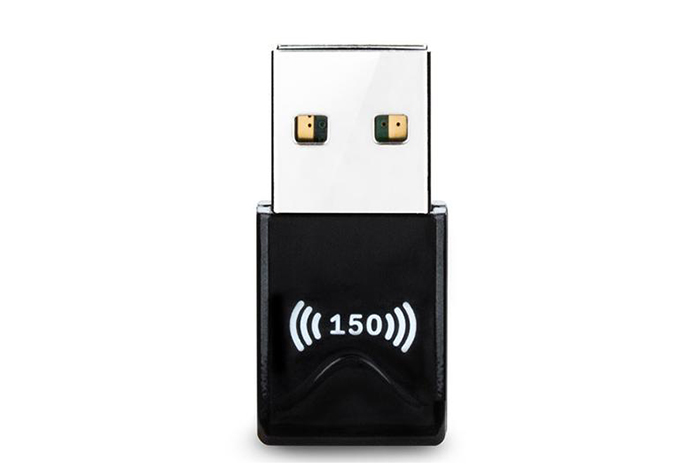

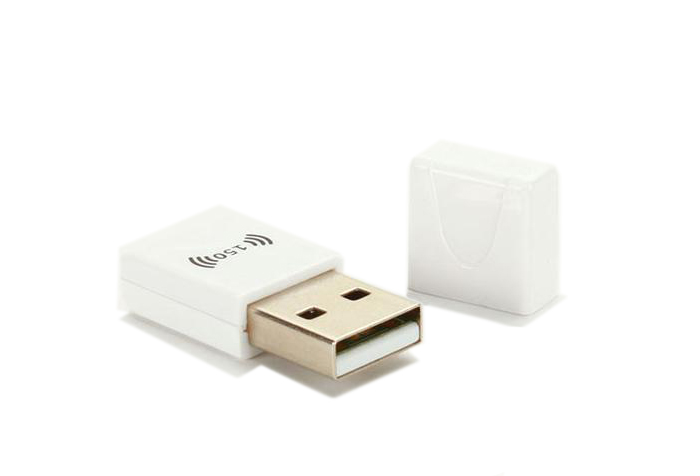

The AT-WE711 is a low-cost compact WLAN adapter. It comes with only about 33x14x7 mm size.
Specification:
|
Hardware |
||
|
Main Chipset |
Ralink RT5370 |
|
|
Host interface |
USB2.0, type A connector |
|
|
LED |
Link/ Activity |
|
|
RF |
||
|
Antennas |
Built-in on board PCB antenna |
|
|
Antenna Impedance |
50 ohm@2.4GHz |
|
|
Operation Frequency |
2412~2483.5 MHz |
|
|
Typical Transmit Power |
802.11b (CCK) 11Mbps: 18+/-1dBm |
|
|
802.11g (OFDM) 54Mbps: 15+/-1dBm |
||
|
802.11n (HT40@MCS7), 13+/-1dBm |
||
|
Receive Sensitivity |
802.11b: -82+/-1dBm |
|
|
802.11g: -68+/-1dBm |
||
|
802.11n (HT20), -67+/-1dBm |
||
|
802.11n (HT40), -65+/-1dBm |
||
|
Software |
||
|
Operation System |
WindowsCE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X |
|
|
Security |
WEP 64/128bit , WPA, WPA2, WAPI, WPS, QoS (802.11e and WMM), WMM-PS, Cisco CCS support up to V5.0 |
|
|
Operation Conditions |
||
|
Voltage Range* |
DC 5.0V ± 5% |
|
|
Operating Temperature |
0°C -50°C |
|
|
Storage Temperature |
-20°C -70°C |
|
|
Operating Humidity |
RH 95% (Non-Condensing) |
|
|
Storage Humidity |
RH 95% (Non-Condensing) |
|
|
Physical Specification |
||
|
Dimensions |
32.5x14.2x7.2mm |
|
|
Weight |
4.1g |
|
Approvals and Certifications
RoHS process, Not ready yet.
