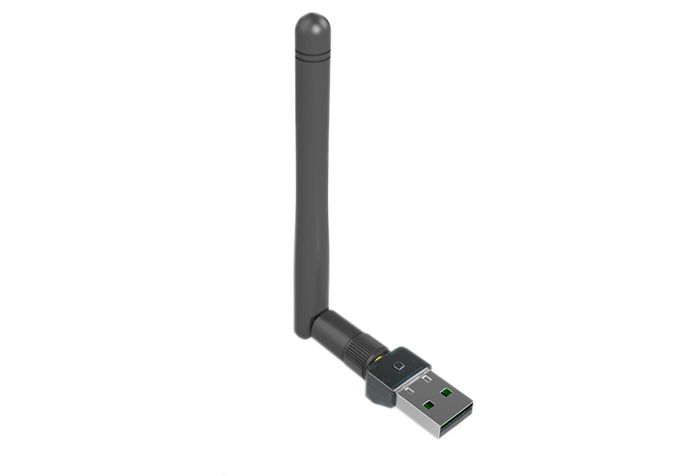

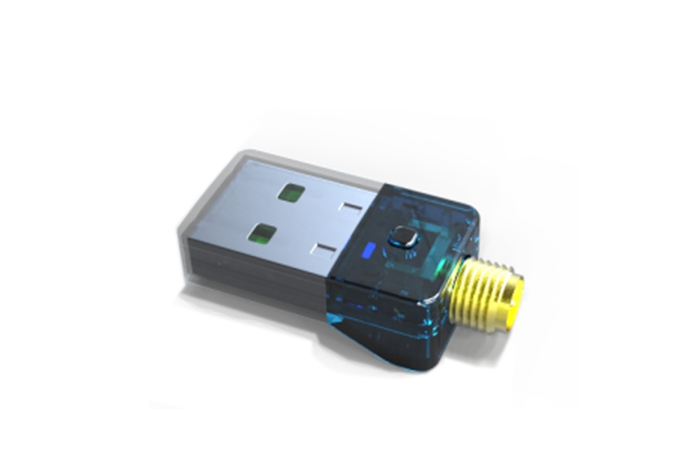

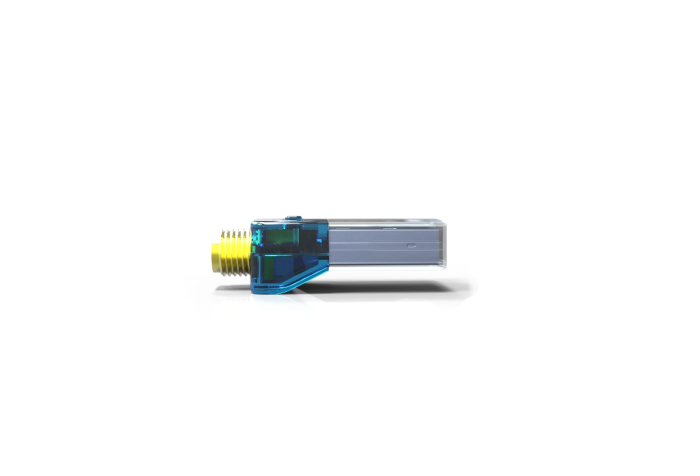

Model: AT-WE715
The AT-WE715 is a WLAN adapter with USB Type A connector, it supports USB2.0 standards interface. The AT-WE715 adapter is designed to operate in 2.4GHz frequency and fully complies with IEEE 802.11b/g and 802.11n standards based on 1T1R technology.

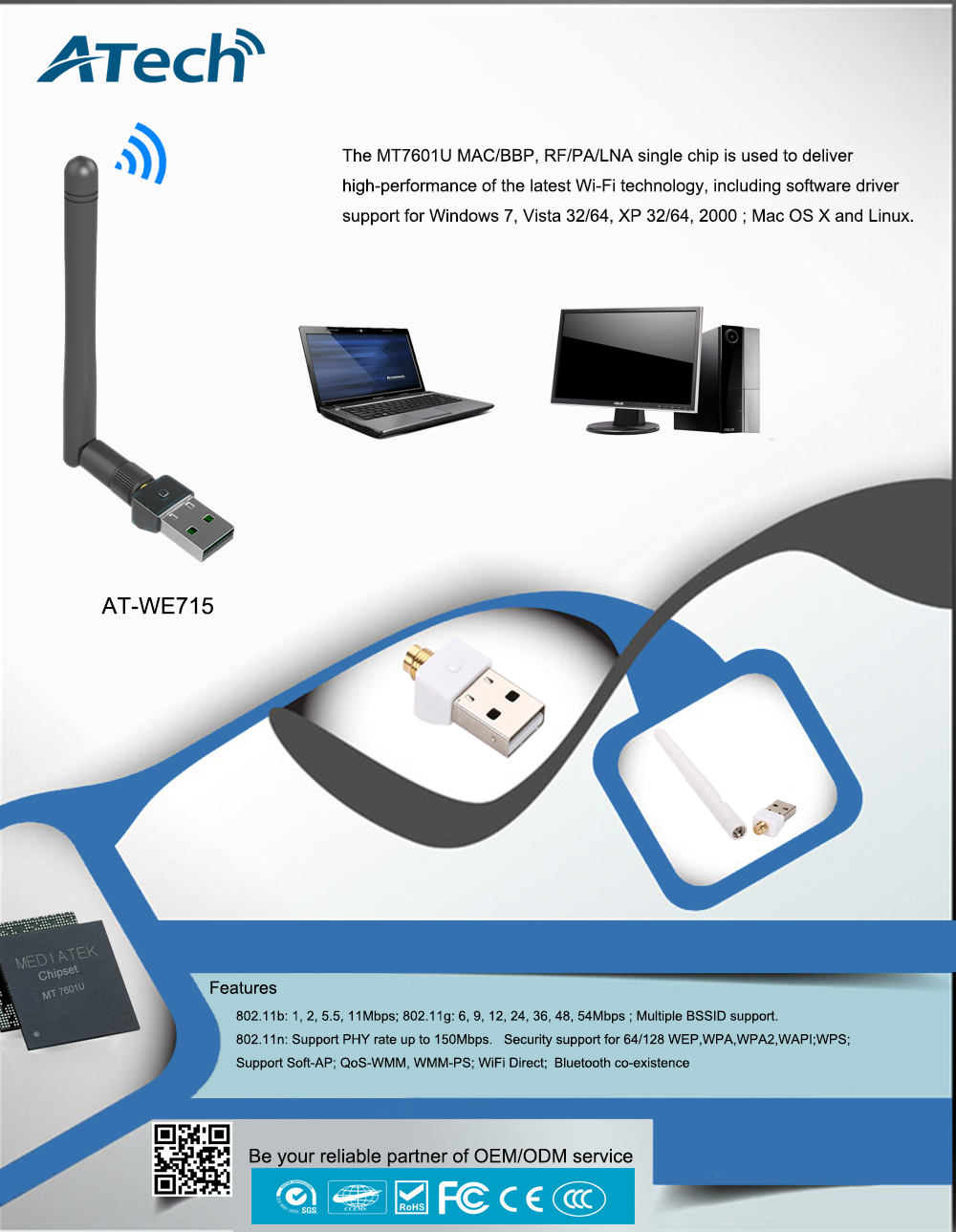

The MT7601U MAC/BBP, RF/PA/LNA single chip is used to deliver high-performance of the latest Wi-Fi technology, including software driver support for Windows 7, Vista 32/64, XP 32/64, 2000 ; Mac OS X and Linux.
Features
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ;
802.11n: Support PHY rate up to 150Mbps.
Support Soft-AP; QoS-WMM, WMM-PS; WiFi Direct;
Security support for 64/128 WEP,WPA,WPA2,WAPI;WPS;
Multiple BSSID support.
Bluetooth co-existence
Specification:
|
Main Chipset |
MT 7601U |
|
|
Host interface |
USB 2.0 Type A |
|
|
LED |
Link/ Activity
|
|
|
Antennas |
||
|
Operation Frequency |
ISM band , 2412~2483.5MHz (Depends on country region). |
|
|
Typical Transmit Power |
802.11b (CCK) 11Mbps: 19+/-1dBm |
|
|
802.11g (OFDM) 54Mbps: 16+/-1dBm |
||
|
802.11n (HT20@MCS7), 16+/-1dBm，(HT40@MCS15),15+/-1dBm |
||
|
Receive Sensitivity |
802.11b: -88+/-1dBm； 802.11g: -73+/-1dBm |
|
|
802.11n (HT20), -70+/-1dBm；802.11n (HT40), -65+/-1dBm |
||
|
Operation System |
Windows XP/Vista/7; Linux 2.6.X; Mac OS X |
|
|
Security |
WEP 64/128, WPS;WPA/WPA2 (TKIP,AES); WAPI;WPS |
|
|
Voltage Range/Current |
DC 5.0V ± 5% / <150mA @802.11g |
|
|
Physical Specification |
||
|
Dimensions |
30*13.8*9.6mm |
|
|
Weight |
14g |
|
Environment
Temperature
Operating Temperature
Continuous reliable operation in ambient temperature: -10ºC to +60ºC.
Storage Temperature
The product is not damaged or degraded when keeping in -20ºC to +85ºC.
Humidity
Operating Humidity Conditions
The product should be capable of continuous reliable operation when subjected to relative humidity in the range of 20% to 80% (non-condensing) .
Non-Operating Humidity Conditions (including warehouse)
The product should not be damaged or degraded when kept in the place (where relative humidity range is in the range of 20% to 80%) for 36 hours.
Approvals and Certifications
RoHS and REACH process, FCC, CE undergoing.
