Introduction:

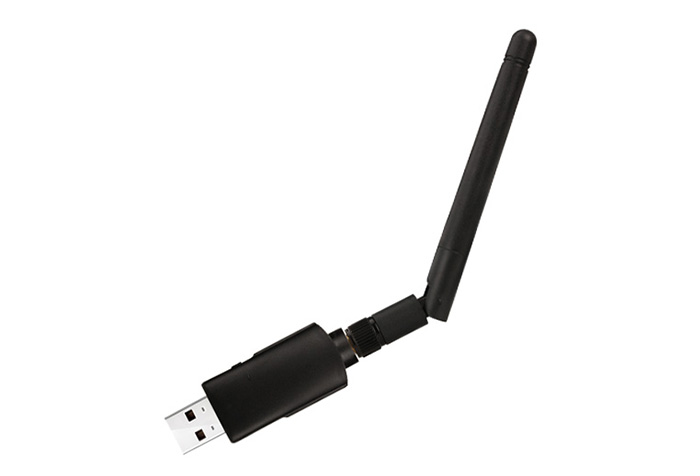

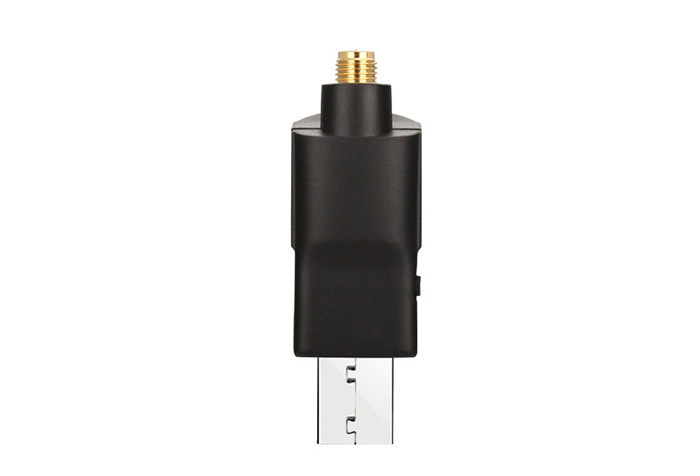

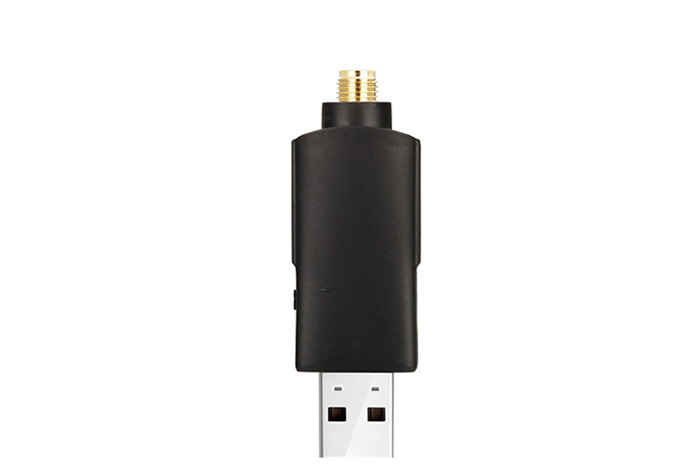

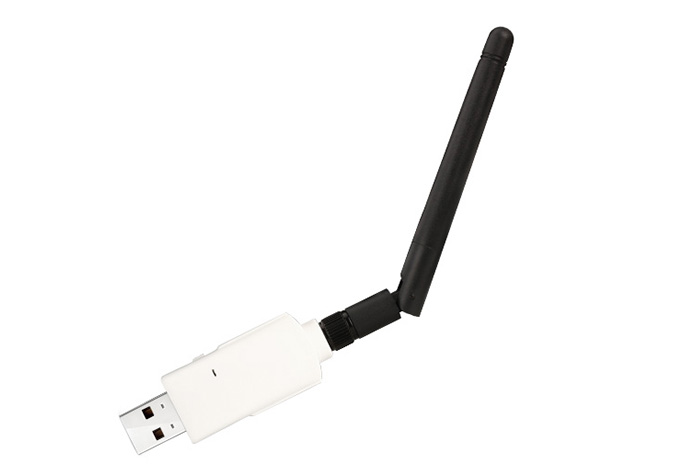

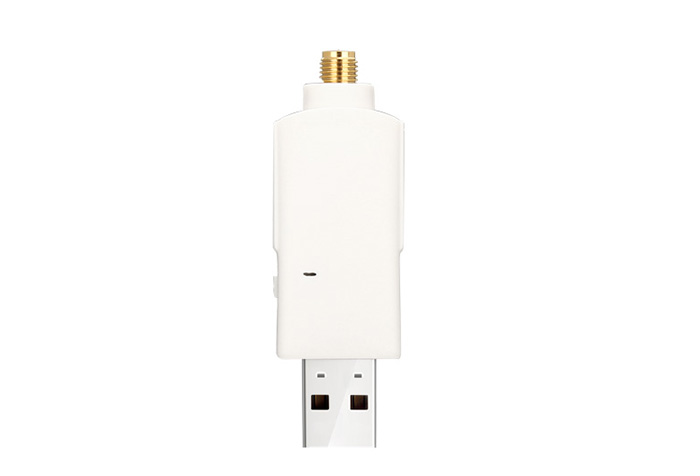

   This mini profile WLAN adapter with rotatable antenna supporting IEEE 802.11 b/g/n standards with a Type A USB connector supporting USB 2.0 interface.

 Scope

 The AT-WE811 is a highly integrated MAC/BBP and 2.4GHz RF/PA/LNA single chip with

300Mbps PHY rate supporting. It fully complies with IEEE 802.11b/g and 802.11n standards based on 2T2R MIMO technology with feature-rich wireless connectivity at high standards, delivering reliable, cost-effective throughput from an extended distance. TheAT-WE811 is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance any time and in any circumstance. The very small and compact WLAN adapter design is good for wireless connectivity when an external antenna is needed.

Features

* 2T2R Mode, with rotatable antennas;

* 20MHz/40MHz bandwidth;

* 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ;

* 802.11n: Support PHY rate up to 300Mbps.

* Support Soft-AP; QoS-WMM, WMM-PS; WiFi Direct;

* WPS button, LED indicates WiFi link&activity;

* Multiple BSSID support.

* Power management.

  Environment

   Temperature

1 Operating Temperature

Continuous reliable operation in ambient temperature: -10ºC to +50ºC.

2 Storage Temperature

The product is not damaged or degraded when keeping in -20ºC to +85ºC.

   Humidity

1   Operating Humidity Conditions

The product should be capable of continuous reliable operation when subjected to relative humidity in the range of 20% to 80% (non-condensing) .

2   Non-Operating Humidity Conditions (including warehouse)

The product should not be damaged or degraded when kept in the place (where relative humidity range is in the range of 20% to 80%) for 36 hours.

  Approvals and Certifications

RoHS and REACH process, FCC, CE undergoing.
