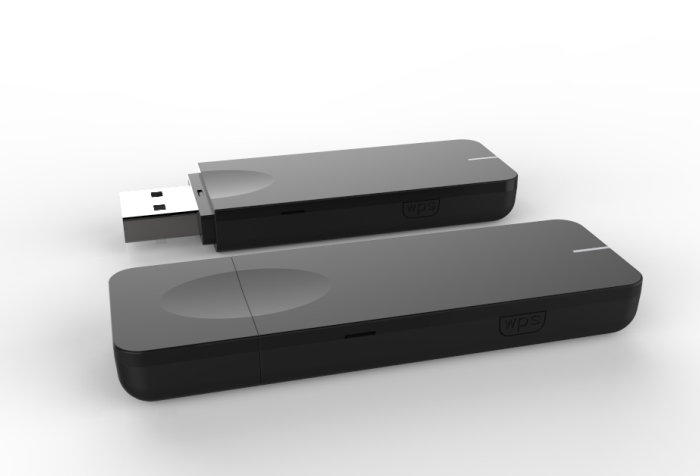

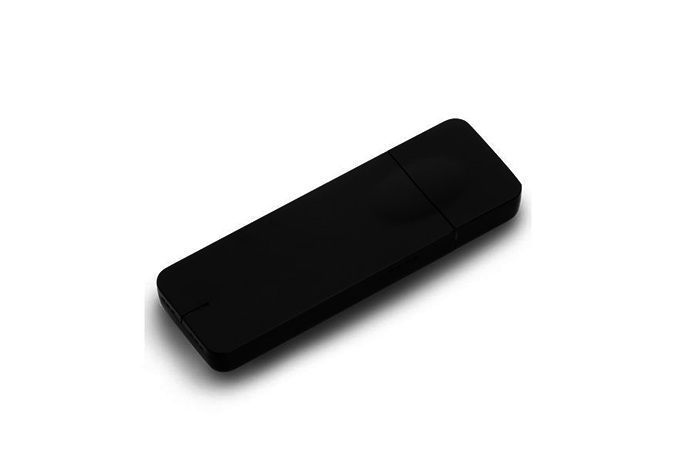

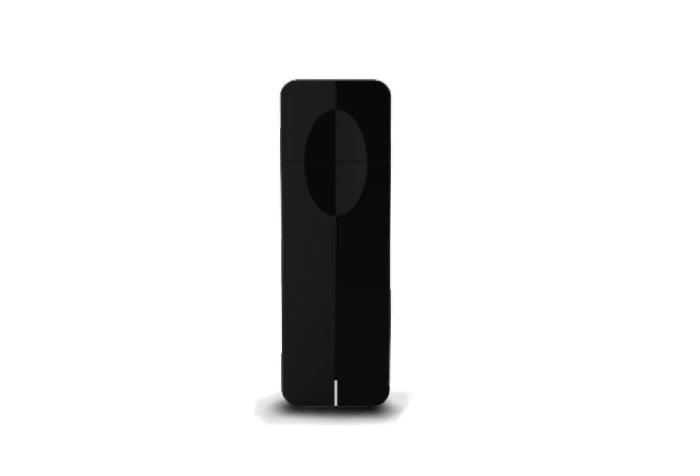

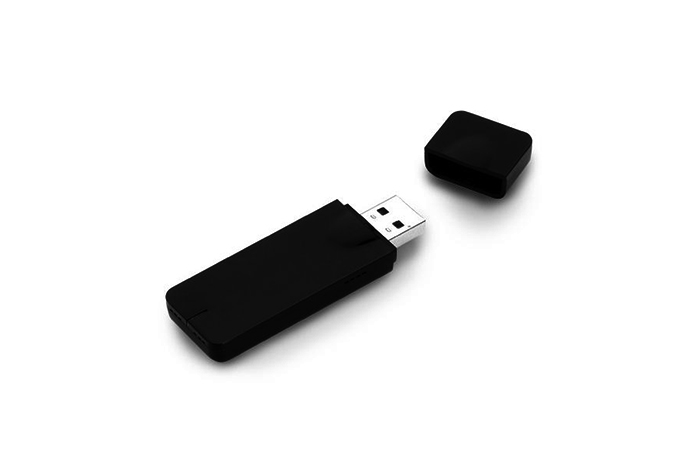

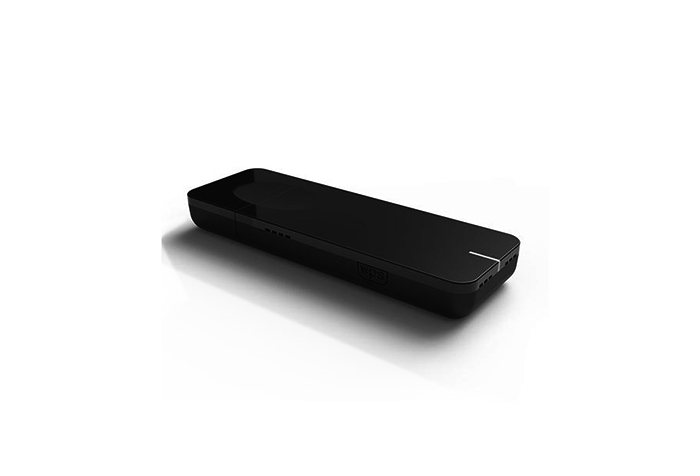

Model: AT-DU910N
Scope:
The AT-DU910N is a WLAN adapter with USB Type A connector, it supports USB2.0 standards interface. The AT-DU910N adapter is designed to operate in 2.4GHz and 5.8GHz dual band frequency and fully complies with IEEE802.11a/b/g /n standards based on 2T2R MIMO technology.
A Ralink RT5572N MAC/BBP, RF/PA/LNA single chip is used to deliver high-performance of the latest Wi-Fi technology.

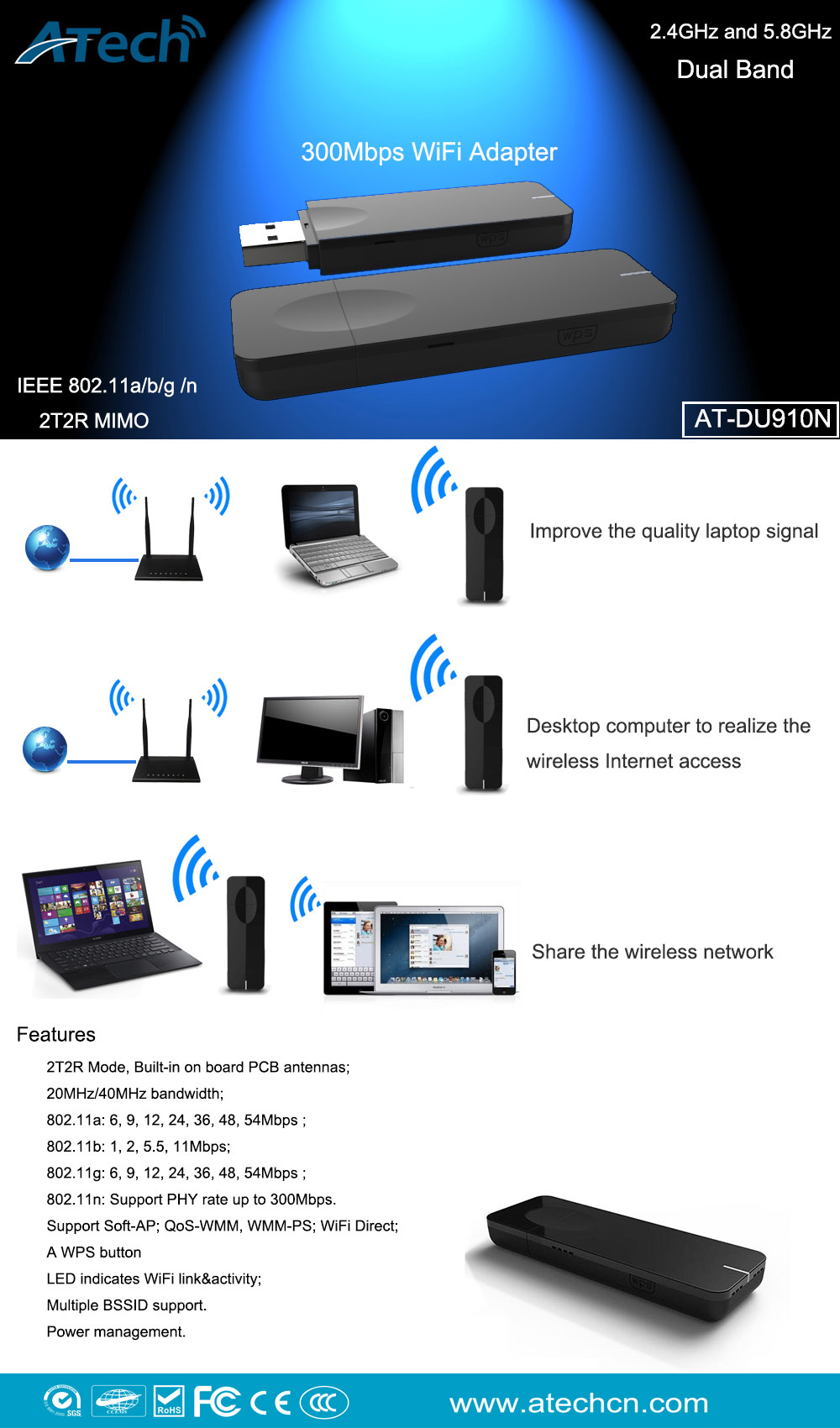

Features:
2T2R Mode, Built-in on board PCB antennas;
20MHz/40MHz bandwidth;
802.11a: 6, 9, 12, 24, 36, 48, 54Mbps ;
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ;
802.11n: Support PHY rate up to 300Mbps.
Support Soft-AP; QoS-WMM, WMM-PS; WiFi Direct;
A WPS button
LED indicates WiFi link&activity;
Multiple BSSID support.
Power management.
Specification:
|
Main Chipset |
Ralink RT5572N |
|
|
Host interface |
USB 2.0 Type A |
|
|
LED |
Link/ Activity
|
|
|
Antennas |
2 built-in onboard 2.4/5 GHz PCB antennas. |
|
|
Operation Frequency |
ISM band , 2412~2483.5MHz , 4915~5825MHz (Detail frequency range depends on country region). |
|
|
Typical Transmit Power (before antenna) |
802.11a (OFDM) 54Mbps: 11+/-1dBm |
|
|
802.11b (CCK) 11Mbps: 18+/-1dBm |
||
|
802.11g (OFDM) 54Mbps: 15+/-1dBm @ EVM <-28dB |
||
|
802.11n (HT20@MCS7), 13+/-1dBm，(HT40@MCS15),13+/-1dBm |
||
|
Receive Sensitivity (after antenna) |
802.11a: -66+/-1dBm |
|
|
802.11b: -89+/-1dBm |
||
|
802.11g: -74+/-1dBm |
||
|
802.11n (HT20), -70+/-1dBm；802.11n (HT40), -69+/-1dBm |
||
|
Operation System |
Windows XP 32/64, Windows 2000, Vista 32/64, Windows7 32/64, Windows8 32/64, Linux 2.6.X, Mac OS X |
|
|
Security |
WEP 64/128, WPA/WPA2 (TKIP,AES); WAPI; WPS/WPS2.0; PIN; PBC |
|
|
Voltage Range/Current |
DC 5.0V ± 5% / <320mA @802.11g |
|
|
Physical Specification |
||
|
Dimensions |
46*20*8mm |
|
|
Weight |
5g |
|
1. Environment
4.1 Temperature
4.1.1 Operating Temperature
Continuous reliable operation in ambient temperature: -10ºC to +50ºC.
4.1.2 Storage Temperature
The product is not damaged or degraded when keeping in -20ºC to +85ºC.
4.2 Humidity
4.2.1 Operating Humidity Conditions
The product should be capable of continuous reliable operation when subjected to relative humidity in the range of 20% to 80% (non-condensing) .
4.2.2 Non-Operating Humidity Conditions (including warehouse)
The product should not be damaged or degraded when kept in the place (where relative humidity range is in the range of 20% to 80%) for 36 hours.
5. Approvals and Certifications
RoHS and REACH process, FCC, CE undergoing
